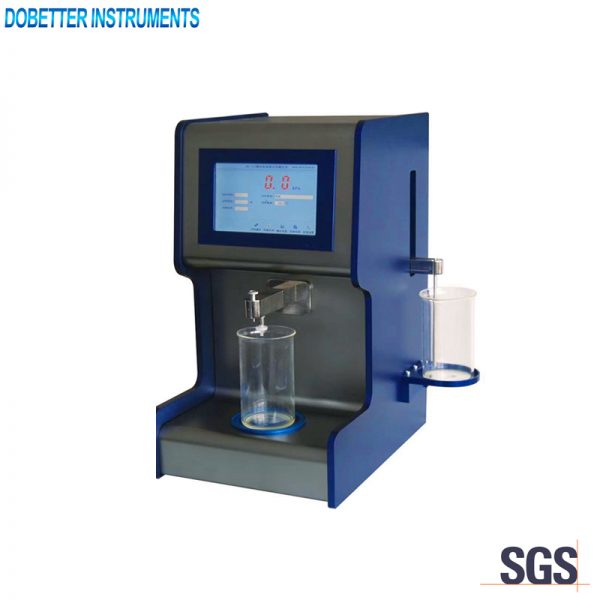

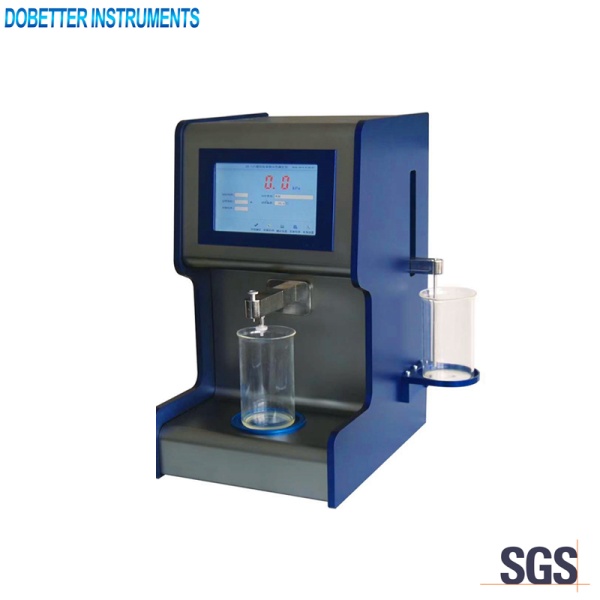

SDB-0895Z Automatic Filter Blocking Tendency Tester

Description

Standards
NB/SH/T 0895, ASTM D2068

Application
This instrument is used for evaluating the cleanliness of middle distillate fuels, and biodiesel and biodiesel blends for specifications and quality control purposes.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Temperature control precision: ±0.1℃
3. Pressure control range: 0-200Kpa
4. Pressure control precision: 0.1Kpa
5. Volumn control range: 0-300mL
6. Volumn control precision: ±1mL
7. Pumping rate: 20mL/min
8. Filtering unit: Glass fiber
9. Data storage: About 10000pcs
10. Working condition: 15-35℃, RH≤85%

Main technical features
1. Built-in IPC technology. Colored touch LCD. It displays all test parameters in real time. Easy to use.
2. It can collect the pressure, measures the volume of the filtration, judge the test result and save the test data automatically.
3. High-precision temperature sensor is equipped. Pressure sensor with over-pressure protection function is equipped.
4. The test results can be saved into and called out from an efficient database of the instrument. These data can be printed by an external printer via the USB port. The test data can also be uploaded to LIMS(Model SDB-0895Z-Pro, customizable).
