GB/T6536,ASTM D86

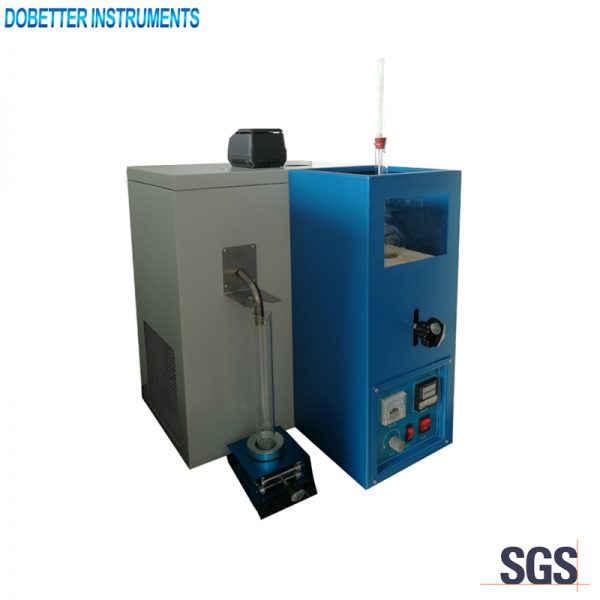

This instrument is used to determine the boiling range characteristics of such products as light and middle distillates, automotive spark-ignition engine fuels, aviation gasoline, aviation turbine fuels, diesel fuels, bio-diesel blends, marine fuels, special petroleum spirits, naphthas, kerosines, white spirits, etc.

Main technical specifications
1. Working power supply:AC(220±10%)V, 50Hz
2. Electric furnace heating power:1000W, continuously adjustable
3. Cylinder capacity:100ml,graduation 1ml
4. The distillation flask: 125ml
5. Thermometer: (-2~300)℃ and (-2~400)℃, division 1℃
6. Flask support board:SiC material. Hole size are φ38㎜ and φ50㎜
7. Digital temperature controller: 0℃~60℃,±0.5℃
8. Maximum power consumption: 2000W

Main technical features
1. Stepless adjustable heating power. Easy to control the heating rate.
2. Special heating furnace is adopted to ensure the safety of the test.
3. The condensation water tank is made of stainless steel which is durable.
4. Danfoss brand compressor. Good cooling performance.
