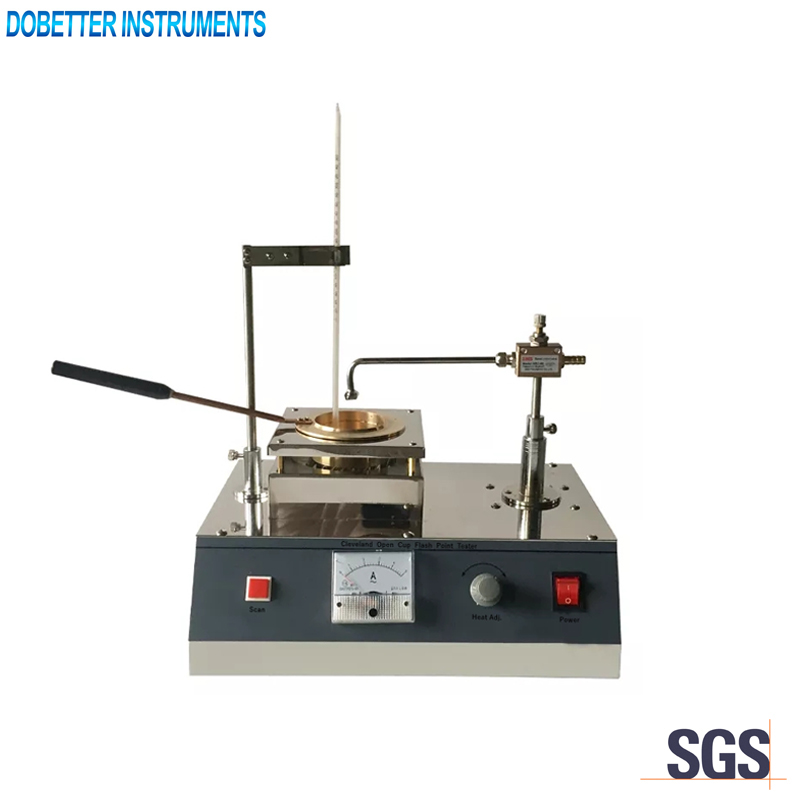

SDB-3536 Cleveland Open Cup Flash Point Tester
- Description
- Specifications&Features
- Inquiry
Description
Standards:
GB / T3536, ASTM D92
Application:
The instrument is used to determine the flash points of the petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Main technical specifications
1. Power supply:AC(220±10%)V, 50Hz.
2. Maximum power consumption:650W
3. Heating device:Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W.
4. Test flame applicator:It applies the test flame automatically.
5. Thermometer:(-6~400)℃. It is the same as thermometer ASTM 11C.
6. Igniting device:(1) Air source: coal gas(or civil gas). (2) Flame diameter is 3.2~4.8mm
7. Ambient temperature:(-10∼50)℃
8. Relative humidity:≤85%
9. Overall dimension: 350mm×290mm×350mm. Net weight:8.5kg
Main technical features
1. It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable.It can meet requirements of test.
2. The instrument adopts desktop structure.The stainless steel working table and furnace shell make it beautiful and elegant.
3. The instrument is fully self-contained complete.The operator can do determination as long as connecting with coal gas or other civil gas.
