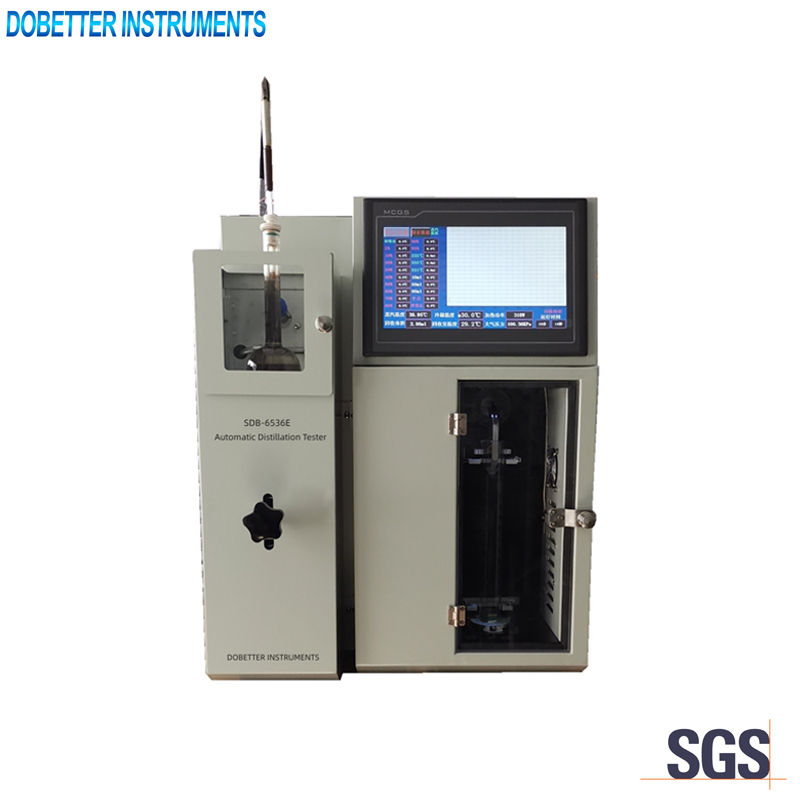

SDB-6536E Automatic Distillation Tester

  • Description
  • Specifications&Features
  • Inquiry

GB/T6536,ASTM D86

This instrument is used to determine the boiling range characteristics of such products as light and middle distillates, automotive spark-ignition engine fuels, aviation gasoline, aviation turbine fuels, diesel fuels, bio-diesel blends, marine fuels, special petroleum spirits, naphthas, kerosines, white spirits, etc. It is an economical automatic instrument.

Main technical specifications
1. Power supply:  AC220V±10%, 50Hz
2. Maximum power consumption:  1500W
3. Condenser system:
(1)Temperature range: 0-60℃  (2)Temperature precision: ±0.1℃
4. Receiving chamber:
(1)Temperature range: 0-60℃  (2)Temperature precision: ±1℃
5. Vapor temperature:
(1)Pt 100 sensor  (2)Temperature range and precision: Rt. to 400℃, ±0.1℃
6. Sample volume:
(1)Volume range and resolution: 0-100mL, 0.01mL  (2)Volume precision: ≤0.5mL
7. Temperature calculation: Automatic, programmable
8. Data storage: 100 groups
9. Working condition:
(1)Ambient temperature: 10-35℃  (2)RH: ≤80%

Main technical features
1. Built-in PC. 12.1 inch colored touch LCD operation. Good user experience.
2. Intelligent control technology. All test procedures are controlled automatically. Easy to use.
3. The advanced infrared photoelectric technology is used to track the liquid level which can avoids the interference of indoor lights and lamplight.
4. 16 groups of preset parameters apply to different kinds of tests. The parameters can also be edited for special test requirements.
5. It can display vapor temperature curve and distillation volume curve in real time during the whole test. Users can judge the data conformity at any time.
6. It can give dry point automatically after the test by automatic calculation of the system.
7. 100 groups of test results can be stored in the system. The test result can be called out and printed at any time.
8. Japanese brand vapor temperature sensor and German brand of compressor are equipped to unsure good test performance and reliability.
