GB/T 5208, ISO 1523, ISO 3679, ASTM D3278, ASTM D3828

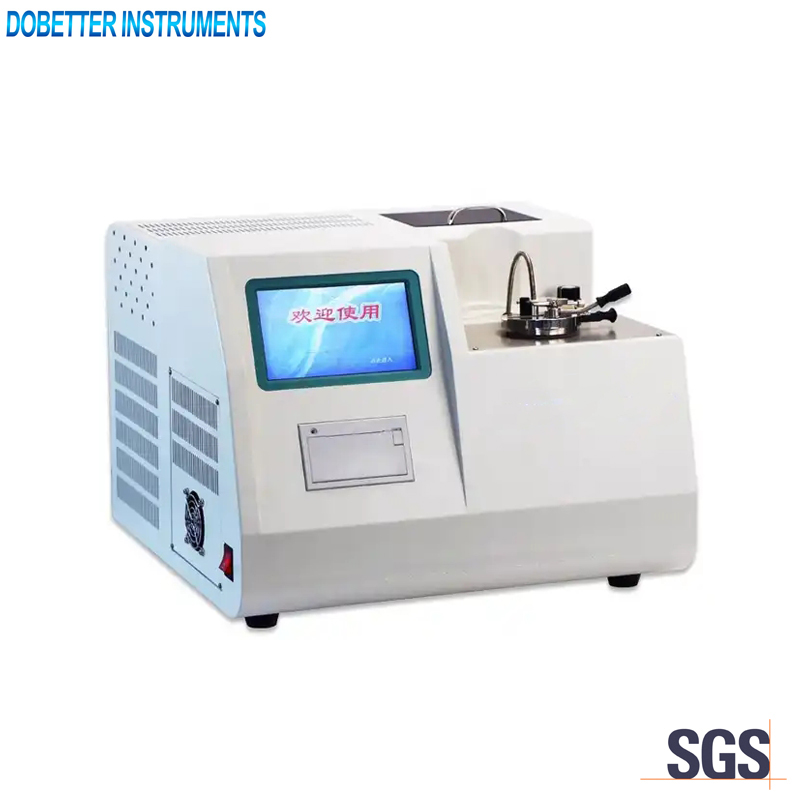

This instrument is used to determine different kinds of colored paints,oil paints,adhesives,solvents and petroleum products which the closed cup flash points are from -30℃ to 100℃.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Temperature range: -30-100℃
3. Temperature resolution: ±0.1℃
4. lgniting device: Electric igniting gun
5. Cooling mode: Semiconductor(without external cooling unit)
6. Maximum power consumption: 300W
7. Ambient temperature: 5-30℃
8. Relative humidity: 30-80%
9. Overall dimension and net weight: 49×52 ×39cm,25.5kg

Main technical features
1. Rapid equlibrium method with closed-cup style is used. It can realize purpose of testing closed cup flash point rapidly at low temperature.
2. Colored touch LCD. SCM control technology. Good and friendly user experience.
3. The instrument adopts semiconductor refrigeration technology. No external cooling unit is needed. The size is small and cooling rate is rapid. Easy to operate.
4. Test sample needed is less. Only 2ml each test(4ml for solid or semi-solid sample)
5. The test procedures are automatically completed except ignition. The test result can be printed automatically. The test data can be exported to PC by a RS232 serial port.
6. Automatic barometric pressure correction function is set up in the system.
7. The test chamber has good corrosion resistance.
