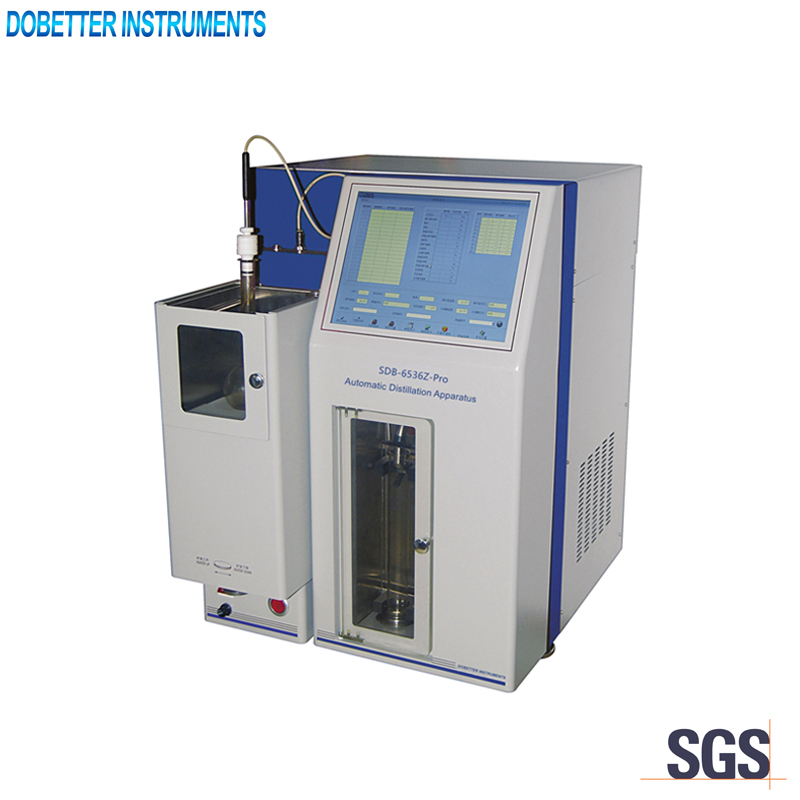

SDB-6536Z Automatic Distillation Tester

  • Description
  • Specifications&Features
  • Inquiry

ASTM D86, ASTM D850, ASTM D1078

This instrument is used to determine the boiling range characteristics of such products as light and middle distillates, automotive spark-ignition engine fuels, aviation gasoline, aviation turbine fuels, diesel fuels, bio-diesel blends, marine fuels, special petroleum spirits, naphthas, kerosines, white spirits, etc. It is a high-end automatic instrument.

Main technical specifications
1. Power supply:  AC 220V±10%, 50Hz
2. Maximum power consumption:  2500W
3. Condenser system:
(1)Temperature range: 0-60℃  (2)Temperature precision: ±0.5℃
4. Receiving chamber:
(1)Temperature range: 0-60℃  (2)Temperature precision: ±1℃
5. Vapor temperature:
(1)Pt 100 sensor  (2)Temperature range and precision: Rt. to 400℃, ±0.1℃
6. Sample volume:
(1)Volume range: 0-100mL  (2)Volume precision: 0.1mL
7. Temperature calculation:  Automatic, programmable
8. Data storage:  5000 groups
9. Working condition:
(1)Ambient temperature: 10-35℃  (2)RH: ≤80%

Main technical features
1. Advanced built-in IPC technology. 12.1 inch colored touch LCD operation. All test procedures can be controlled automatically. Wonderful user experience.
2. The advanced infrared photoelectric technology is used to track the liquid level which can avoids the interference of indoor lights and lamplight.
3. It can display the vapor temperature, heater temperature, condenser temperature, receiving chamber temperature, distillation rate curve in real time during the whole test.
4. It has the function of atmospheric pressure automatic detection and calculation according to the measured pressure.
5. The repeatability and reproducibility of several test results can be compared automatically.
6. Equipped with a flame detector. It has automatic fire extinguishing function.
7. German brand of vapor temperature sensor and compressor are equipped. Reliable test performance and stability.
8. 5000 groups of test results can be stored in the instrument. The test result can be called out at any time. The data can be uploaded to LIMS(Model SDB-6536Z-Pro, customizable).
