JTG E20-2011 / T0754, ASTM D3910

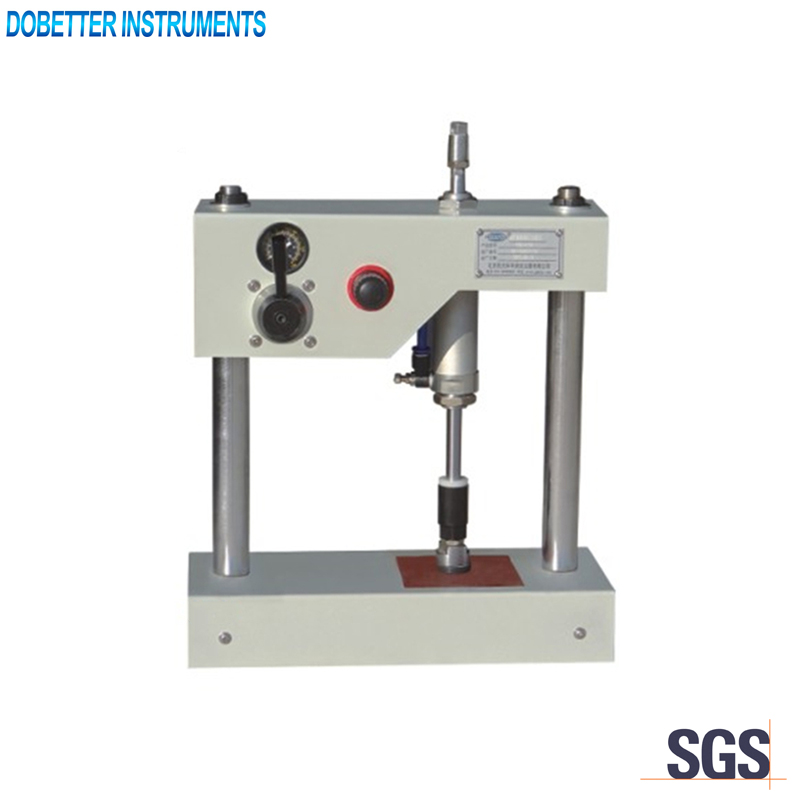

This instrument is used to determine the initial setting time and the period of that can carry traffic of slurry mixtures.

Main technical specifications

1. Force head: Rubber pad with 28.6mm diameter and 6.4mm thick
2. Force wrench: Maximum torque is Dowel bar diameter is 8cm
3. Round mould: ①φ60mm (inner diameter) × 6mm (height), ②φ60mm (inner diameter) × 10mm (height)
4. Dimensions and weight: 420x270x560 (mm), 15Kg
5. Ambient temperature: ≤35 ℃
6. Relative humidity: ≤85%
Main technical features

1. Desktop structure, easy to carry, advanced design.
2. The test can be done either indoor or on site.
3. Easy to use, accurate and reliable test results.
