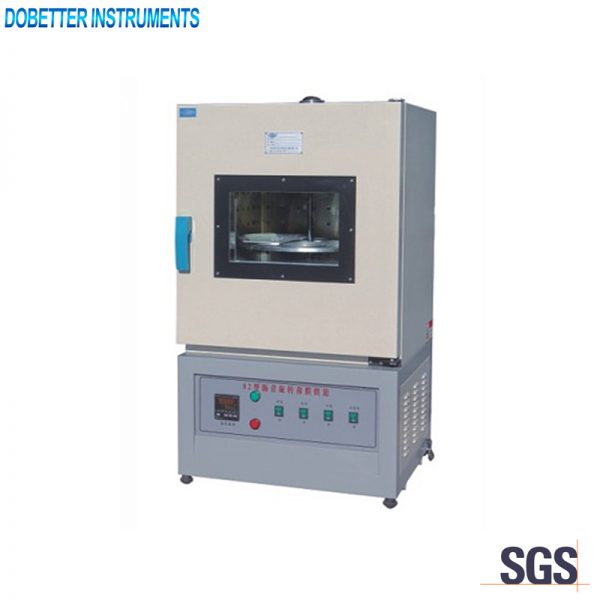

SDB-0608 Loss on Heating Oven

Description

Standards
JTG E20-2011/ T0608, ASTM D6.

Application
The instruments is used to determine the loss in mass (exclusive of water) of oil and asphaltic compounds when heated as hereinafter prescribed.

Main technical specifications

1. Power supply： AC220V, 50Hz
2. Maximum power consumption： 3000W
3. Temperature in working chamber： 163℃
4. Temperature precision： ±0.5℃
5. Rotating speed of turning plate： (5.5±1)r/min
6. Test sample amount： 2~4 samples
7. Test sample container： Made of metal(or hard glass)
8. Size of working chamber： 450×450×500(mm)
9. Packing dimension and G.W.： 730×700×1250(mm), 116kg

Main technical features

1. The thermometer can be read easily during the test.
2. A digital temperature controller is equipped to control and display the temperature at a range of 50℃〜199℃.
3. Stainless steel materials is used for the working chamber.
