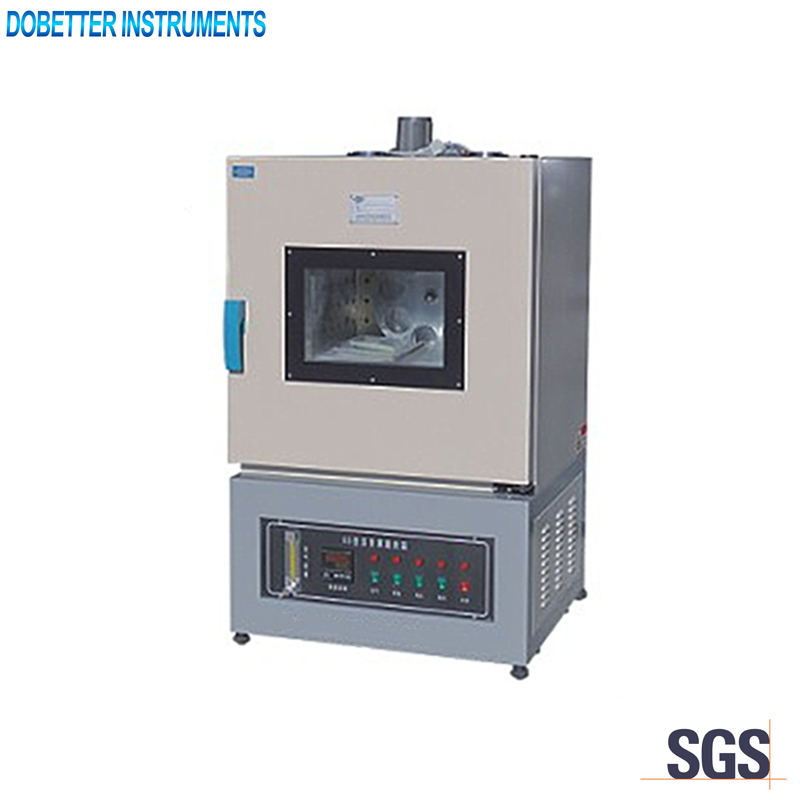

SDB-0610 Rolling Thin Film Oven(RTFOT)
- Description
- Specifications&Features
- Inquiry
Description
Standards
JTG E20-2011/T0610, ASTM D2872.
Application
The instruments is used to determine effect of heat and air on a moving film of semi-solid asphaltic materials.
Main technical specifications
1. Power supply: AC220V, 50Hz
2. Maximum power consumption: 2500W
3. Temperature in working chamber: 163℃
4. Temperature precision: ±0.5℃
5. Rotating speed of turning plate: (15±0.2)r/min
6. Test sample amount: 8 samples
7. Test sample container: Made of heat-resistant glass
8. Air flow:(4000±200)ml
9. Dimension and weight: 800×800×1250(mm), 146kg
Main technical features
1. The thermometer can be read easily during the test.
2. A digital temperature controller is equipped to set and display the temperature.
3. An air fan is equipped for stirring. The temperature precision is high. The temperature will rise up to 163℃ only 10min after sample loading and door closing.
4. Stainless steel materials is used for the working chamber.
5. Double-door design for safer operation.
