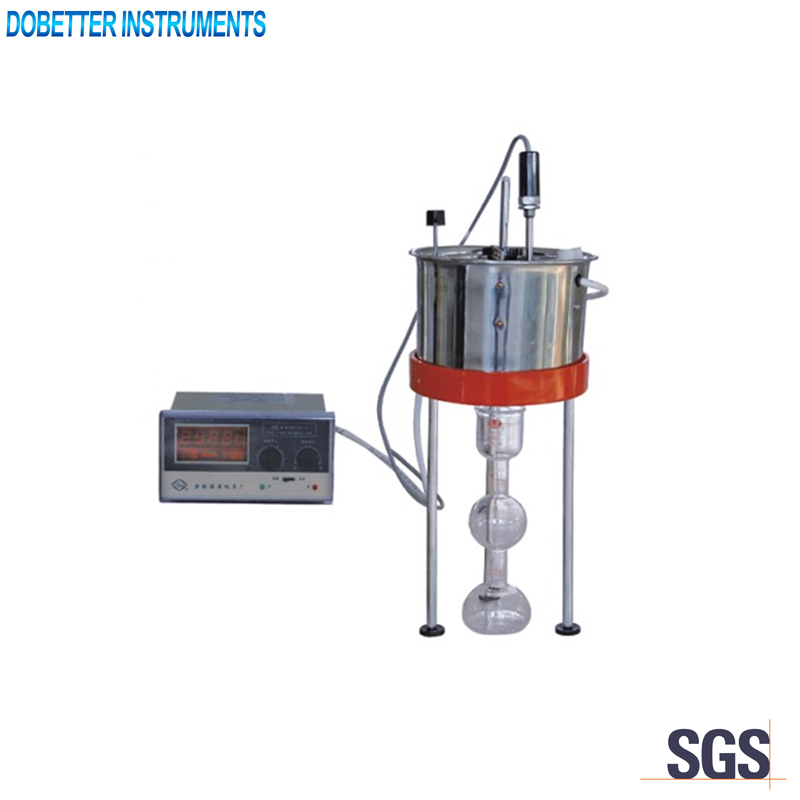

WNE-1A Engler Viscometer

  • Description
  • Specifications&Features
  • Inquiry

JTG E20-2011 / T0622, ASTM D1665

It is suitable to determine the rate of time(seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20℃ under certain temperature and cubage.This rate is the Engler viscosity..Unit is Engler degree.

Main technical specifications

1.Standard water value:(51±1)s
2.Temperature range:(0~100)℃
3.Temperature control accuracy:±0.2℃
4.Specification of measuring flask:(200±0.2)ml
5.Inner crucible:stainless steel material
6.Power of electric heater:550W(AC220V, 50Hz)
7.Dimension:200mm×200mm×400mm(Temperature controller is not included)

Main technical features

1. The instrument is composed of tester and temperature controller. Desktop structure.Both of inner and outer crucible adopt stainless materials.Inner crucible has been specially processed.The smooth finish corresponds with the test requirements.
2. The temperature controller adopts digital display type. The parameters set is convenient. The temperature controlling precision is high.
