GB/T4505, JTG E20-2011/T0606, ASTM D36.

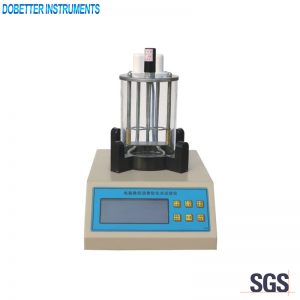

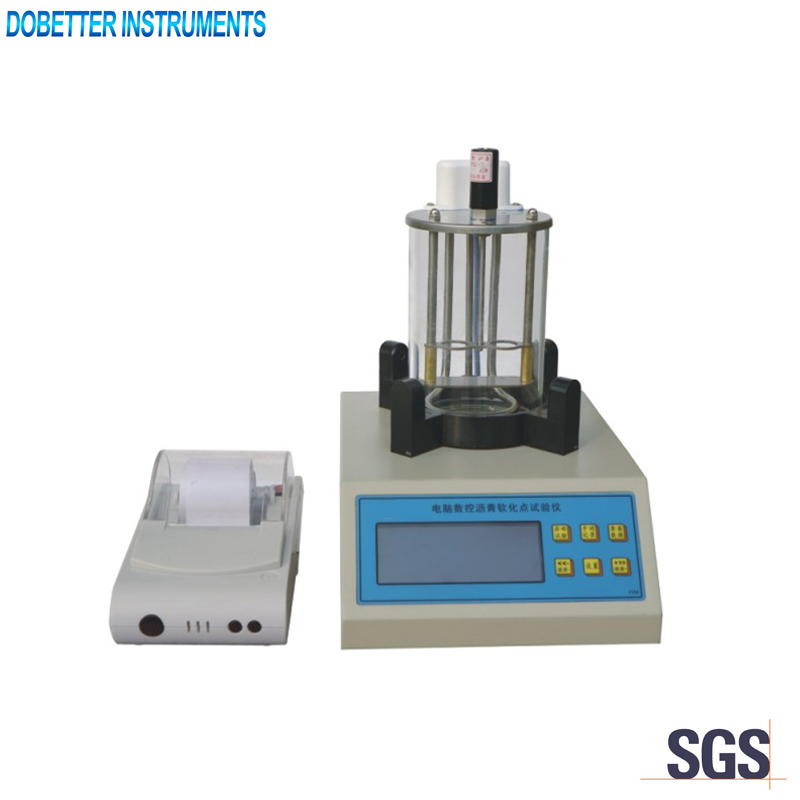

The instruments is used to determine the softening point of bituminous materials.

Main technical specifications

1. Power supply: AC220V, 50Hz
2. Maximum power consumption: 800W
3. Temperature range and precision: (5~180)℃,±0.2℃
4. Heating rate: (5±0.5)℃/min
5. Heating control: PID regulation, vane stirring
6. Detection mode: Visible light or manual
7. Ball: weight 3.5g±0.05g diameter 9.53mm
8. Timing range: 0~99m99s
9. Dimension and weight: 340×230×340(mm), 4.5kg

Main technical features

1. LCD with blue-colored background.
2. The temperature control is automatic. No personal error.
3. Pt100 temperature sensor. The sensitivity is better.
4. PID method controls heating rate. The linearity is good.
5. Magnetic stirring makes the temperature more uniform.
6. Simple design. Easy to use.
7. Visible light detect the softening point temperature. Manual detection can also be selected. Automatically calculate the average value.
8. A printer is equipped with this model for printing.
