Description

Standards
GB/T 507-2002, DL4291, DL/T 846.7-2004, IEC 156:1995

Application

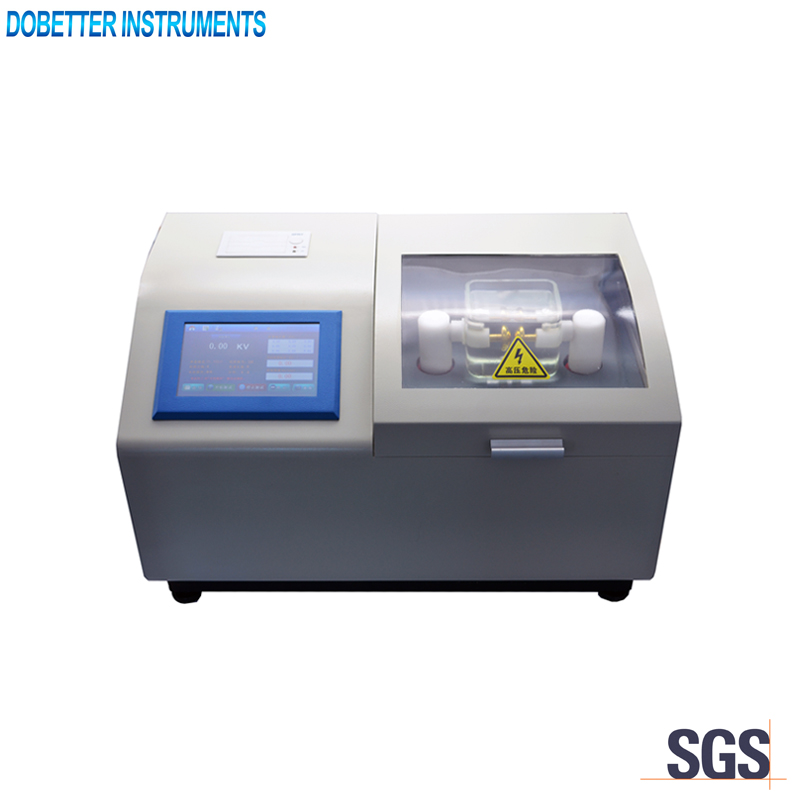

This instrument is used to determine the dielectric strength of various of insulating oils applicable to railway, aviation, power plant and oil industry.

Main technical specifications
1. Voltage booster capacity: 1.2 kVA
2. Voltage lifting speed: 1.0 kV/s~10 kV/s , settable.
3. Output voltage: 0~80KV
4. Detection accuracy: 0.01KV
5. Distortion rate of high voltage power supply: <1%
6. Display: 7 inches WVGA high-definition colored LCD
7. Ambient temperature: 0~40℃
8. Relative humidity: ≤85%
9. Power supply: AC 220V±10%,50±5 Hz
10. Maximum power consumption: <200 W
11. Net weight: 42kg

Main technical features
1. 7-inch high-definition TFT touch screen. YTOS special equipment operating system makes the user experience excellent. AVR Series of SCM controls the whole test operation fully automatically.
2. 0~80KV range of volatage test can be done. The voltage lifting rate can be adjusted.
3. After the test is completed, the value of the breakdown voltage and the average value can be printed, and 500 pcs of data can be stored.
4. Automatic and manual operation mode can be selected, flexible and practical.
5. Over-voltage, over current, automatic return to zero and other protective devices are set to protect the personal safety of the operator.
6. Breakdown detection by current mutation detection and wavelet analysis combined with double capture technology, ensure the reliable detection of breakdown voltage and avoid the miss and false detection.
