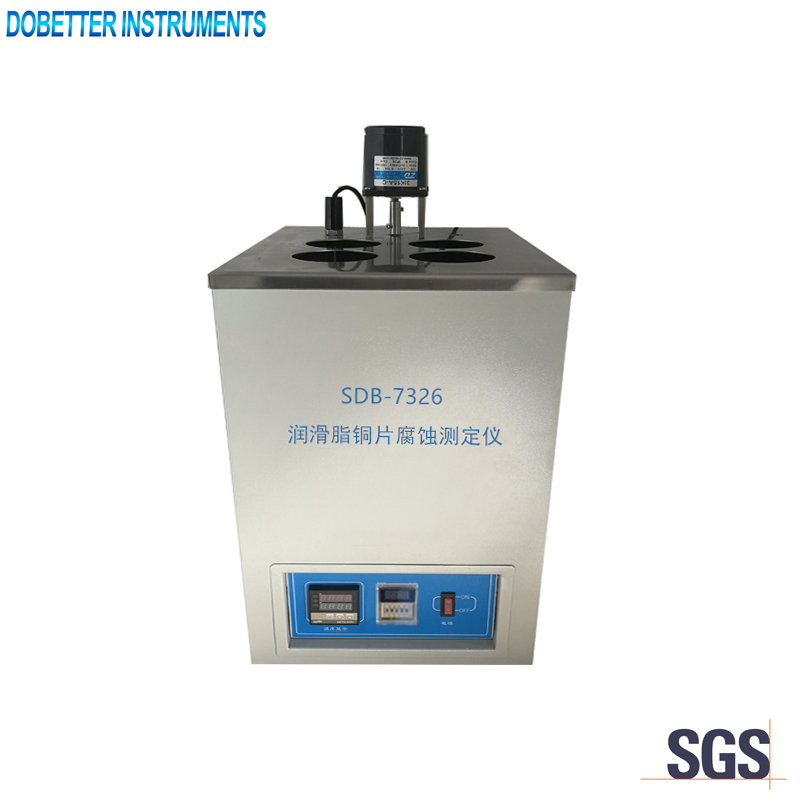

SDB-7326 Lubricating Grease Copper Corrosion Tester

SDB-7326 Lubricating Grease Copper Corrosion Tester

  • Description
  • Specifications&Features
  • Inquiry

Standards
GB/T 7326,ASTM D4048

Application
This instrument is used to determine the tendency of lubricating grease to corrode copper under specific static conditions.

Main technical specifications

1. Power supply: AC220V±10%,50Hz;
2. Temperature sensor: Pt100,RTD
3. Temperature range: Ambient to 100℃,can be set at will
4. Temperature precision: ±1℃
5. Temperature display: LED
6. Heating power: 600W(Temperature control)+1000W(Auxiliary heating)
7. Timing range: 1min~24hour,can be set at will
8. Time display: LED
9. Sample test hole: 4 sample holes
10. Sample test amout:(4~12)pcs
11. Ambient temperature: room temperature~35℃
12. Relative humidity: ≤85%
13. Maximum power consumption: 1800W

Main technical features

1.The bath and bath lid are made of stainless steel, good corrosion resistance.
2.Digital temperature controller ensures the temperature accurate and stable, no overshoot.
3.Motor stirring makes the bath temperature uniformity good.
4.The timer will beem at the end of the test.
