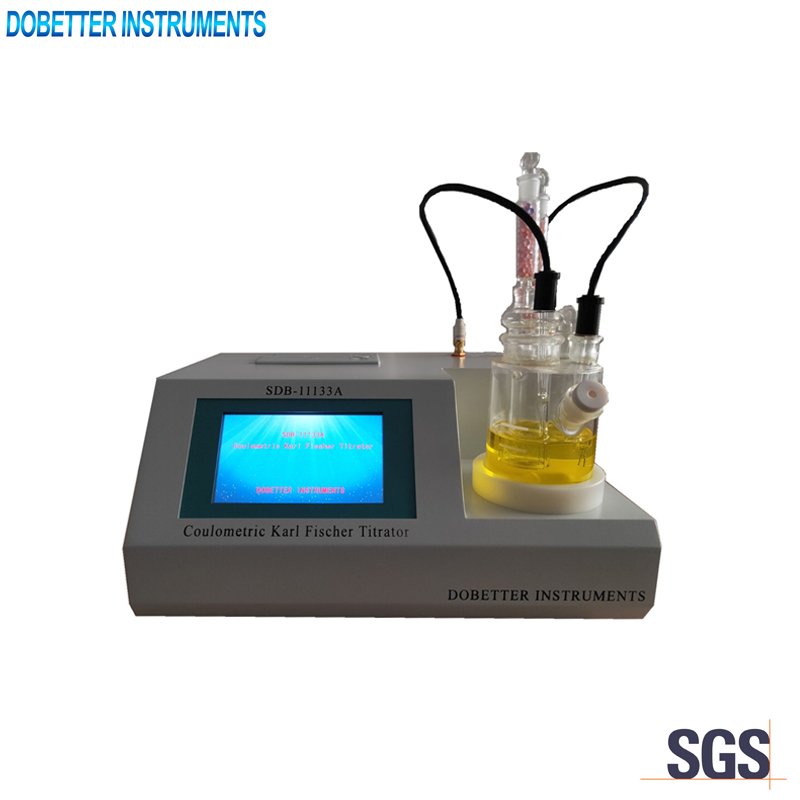

SDB-11133A Coulometric Karl Fischer Titrator

  • Description
  • Specifications&Features
  • Inquiry


GB/T 11133,GB7600,GB/T606-2003,GB/T3727-2003,GB/8350,GB/8351,GB/T 6023,GB/T 6283,GB/T 11146-1999,SH/T 0246,ASTM D4928,ASTM D1533,ASTM D6304


This instrument is used to determine the trace water content in liquid petroleum products.


Main technical specifications

1. Power supply: AC220V±10%, 50Hz±5%
2. Maximum power consumption: 30W
3. Maximum current: 400mA
4. Measurement range: 3μg~100mg
5. Resolution: 0.1μg
6. Precision: Under 1mg: ≤3μg;
Over 1mg: within±0.3%
7. Data saving: 255pcs
8. Built-in printer: Thermal printer
9. Calculation formula: 5 kinds can be selected.
10.Ambient temperature: 5~40℃
11.Relative humidity: 10%~80%
12.Overall dimension and N.W:335mm×250mm×165mm,6kg

Main technical features

1. Coulometric method. Rapid analysis and high precision
2. Colored LCD. Touch-screen.
3. Stirring rate is adjustable with sliding mode on the touch screen.
4. Dynamic curve indicates status with English explanation.
5. Automatically detect the end point. Buzzer prompts.
6. 255 pieces of data can be saved. Built-in printer equipped. 5 kinds of calculation formulas can be selected.
