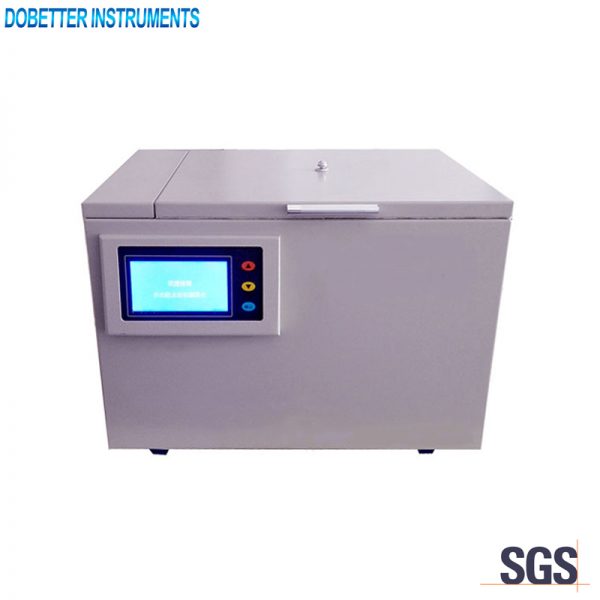

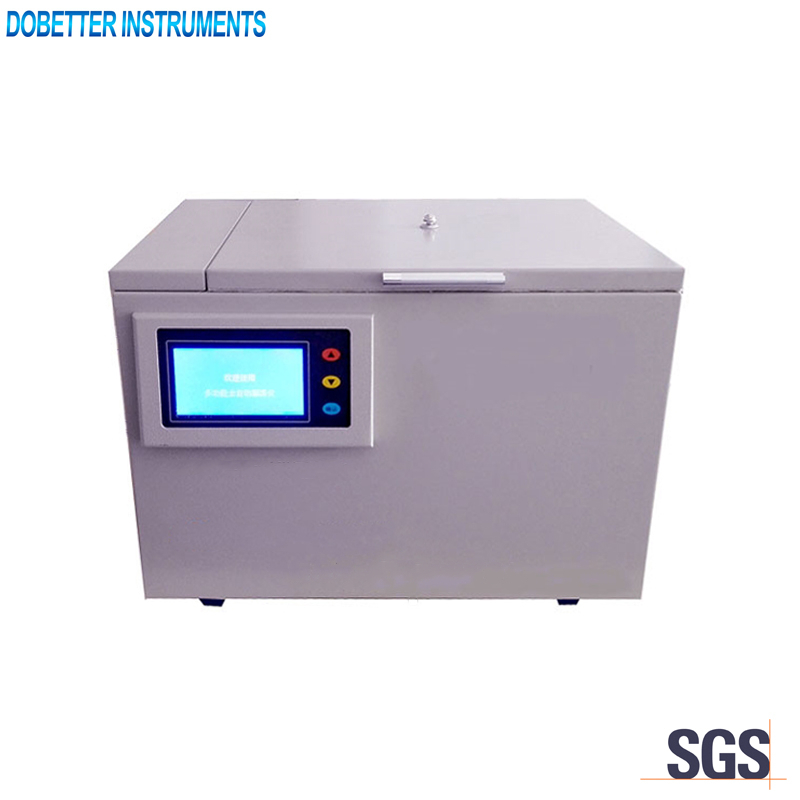

SDB-17623 Multifunctional Automatic Degassing Oscillator

SDB-17623 Multifunctional Automatic Degassing Oscillator

  • Description
  • Specifications&Features
  • Inquiry


GB/T 17623-1998


The instrument is suitable for the determination of dissolved gases in the insulation oil.

Main technical specifications
1. Display method:  Large-screen LCD display
2. Temperature range:  Ambient~120℃
3. Temperature precision:  (Ambient~50)℃,±0.2℃; (50~100)℃,±0.3℃; (100~120)℃,±0.5℃
4. Oscillation frequency:  (275 ± 3) times / min
5. Oscillation amplitude:  35mm
6. Time control:  (Degassed chromatographic oscillation) and shaken for 20 minutes, and 10 minutes resting thermostat 50 ℃,(Water-soluble acid oscillation) shaken for 5 minutes, the thermostat 75 ℃,(Custom) standing oscillation time (0 to 99) minutes arbitrarily set,set to any temperature in (0 to 100)℃
7. Sample amount:  8 100ml or 50ml syringe injector (optional); (chromatography degassing oscillation)
8. Power supply:  AC220V, 50Hz
9. Ambient temperature:  5~50℃, humidity≤85%
10.Overall dimension:  500*360*360(mm)

Main technical features
1. Large-screen LCD. Easy to operate.
2. Overvoltage, overcurrent, overheating automatic power-off protection, safe and reliable.
3. Imported linear motor, fatigue resistance, low noise.
4. Outside thermometer jack for observation and comparison.
5. PT1000 temperature sensors. Self-tuning PID temperature control. The temperature control precision is high.
