Standards
JTG E20-2011/ T0609, ASTM D1754.

Application

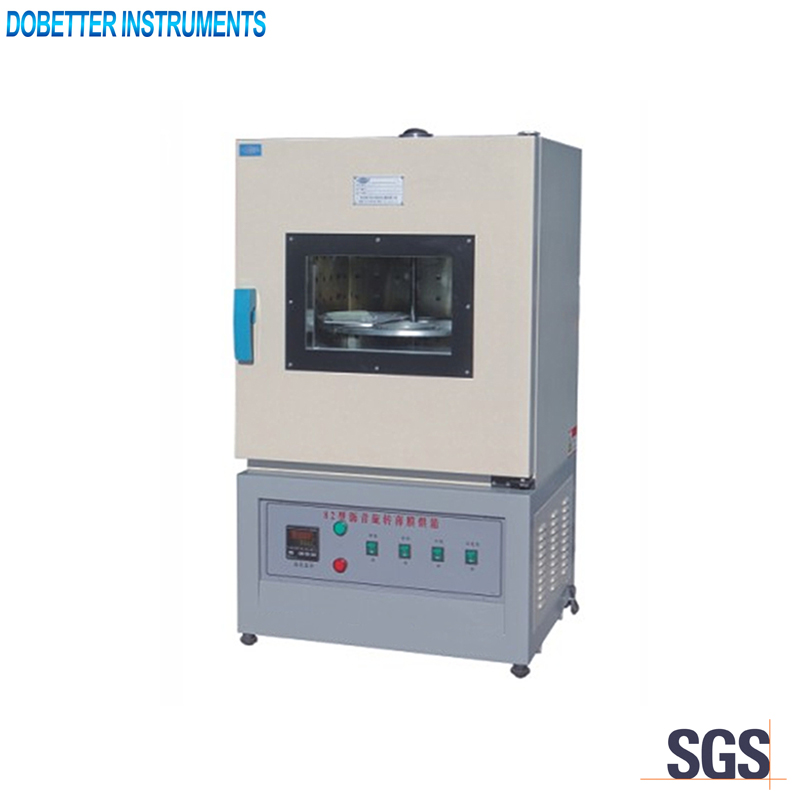

The instruments is used to determine effect of heat and air on asphaltic materials

Main technical specifications

1. Power supply: AC220V, 50Hz
2. Maximum power consumption: 3000W
3. Temperature in working chamber: 163℃
4. Temperature precision: ±0.5℃
5. Rotating speed of turning plate: (5.5±1)r/min
6. Test sample amount: 4 samples
7. Test sample container: Made of aluminum(or stainless steel)
8. Size of working chamber: 450×450×500(mm)
9. Dimension and weight: 730×700×1250(mm), 116kg

Main technical features

1. The thermometer can be read easily during the test.
2. A digital temperature controller is equipped to control and display the temperature at a range of 50℃〜199℃.
3. Stainless steel materials is used for the working chamber.
