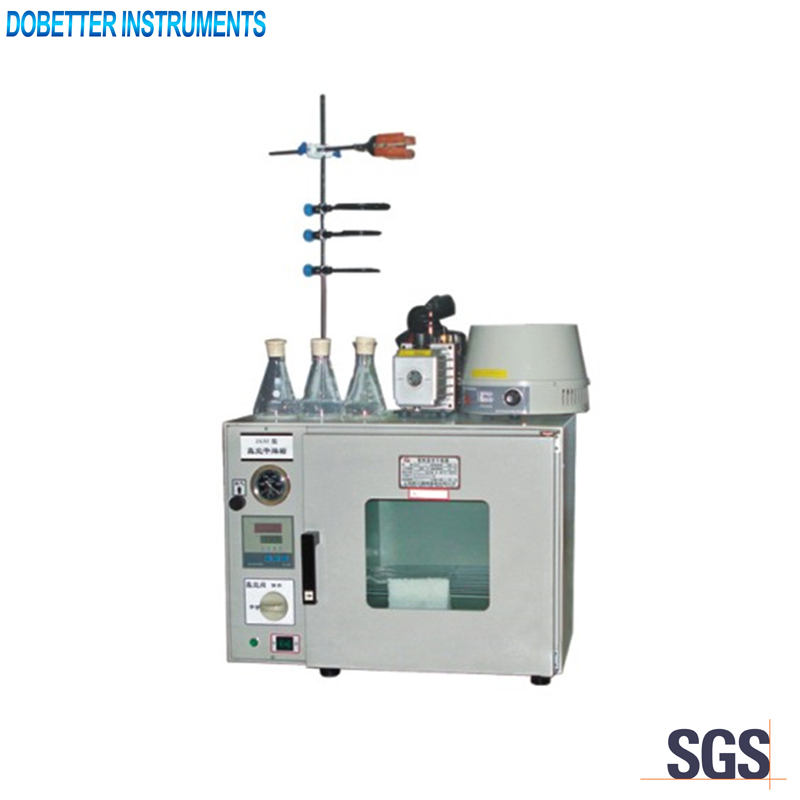

SDB-0615-1 Wax Content Tester’s Accessories

Description

Standards

JTG E20-2011/T0615, ASTM D721.

Application

This instrument is used to determine the wax content in the petroleum asphalts by cracking distillation.

Main technical specifications

1. Power supply: AC220V, 50Hz
2. Vacuum degree: <133
3. Temperature range: 50 ℃ ~ 250 ℃
4. Temperature precision: ± 1 ℃
5. Working chamber size: 300 * 300 * 275 (mm)
6. Ambient temperature: -10 ℃ ~ 30 ℃, relative humidity ＜85%
7. Maximum power consumption: 400W
8. Overall dimensions: 550 * 400 * 375 (mm)
9. Weight: 65kg
Main technical features

1. Imported pump and heating appliances.
2. The working chamber is rectangular so that the effective volume can be maximum. The temperature control is intelligent.
3. Toughened bulletproof glass door makes it is obvious to observe the working condition of items.
4. It is adjustable of the door closing tighteness. The elastic silicone rubber are integrally molded for sealing to ensure a degree of vacuum chamber.
5. The chamber is made of cold-rolled steel. Durable and strong.
