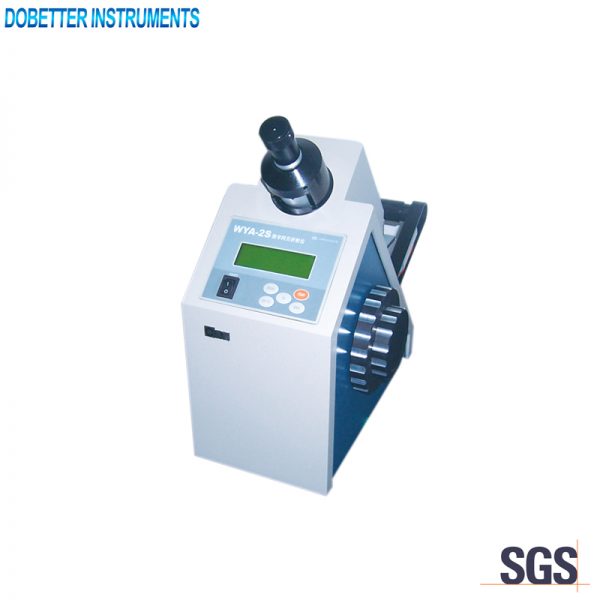

WYA-2S Abbe Refractometer

  • Description
  • Specifications&Features
  • Inquiry

WYA series Abbe refractometers are instruments that can measure the refractive index and average dispersion of transparent, translucent liquid or solid (mainly transparent liquid). Refractive index and average dispersion are two of the important optical constants of materials, which can be used to understand the optical properties, purity and dispersion size of materials.

Main technical specifications
1. Measuring range:1.30 nD to 1.70 nD
2. Measuring accuracy:0.0002 nD
3. Resolution:0.0001 nD
4. Temperature display:LCD, automatic reading
5. Applicable temperature range:0~50℃(need external thermostat)
6. Communication port:RS232
7. Overall dimension:330×180×380mm
8. Net weight:10kg

Main technical features
1. Visual targeting. LCD display. Automatic reading. Easy to operate.
2. Hard-glass prism. Stainless steel base. Good anti-corrosion and long lifetime.
3. A RS232 port is set to communicate with PC.
