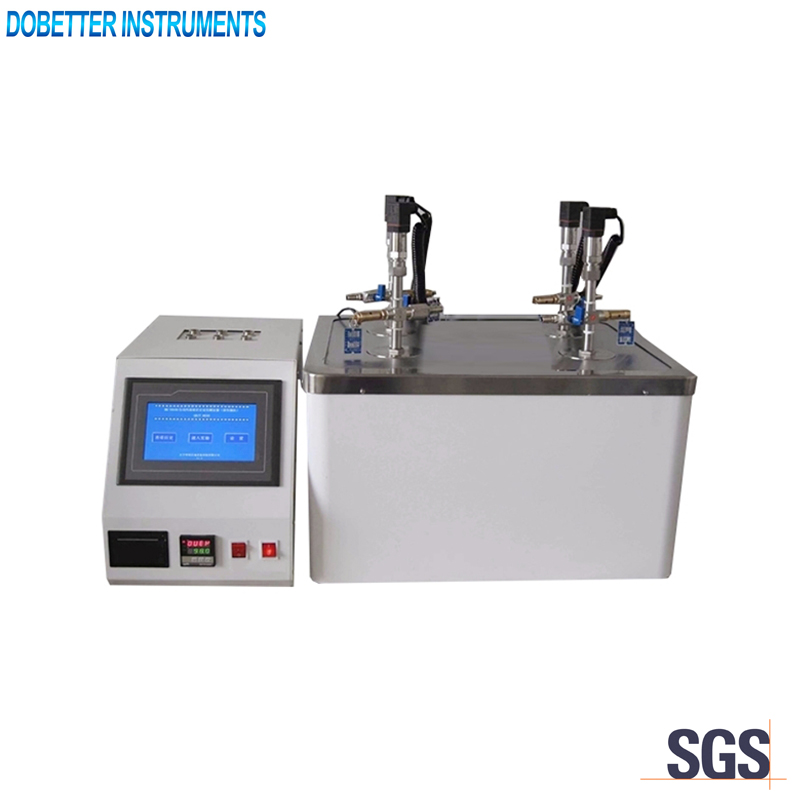

SDB-8018A-4 Automatic Gasoline Oxidation Stability Tester(Induction Period)

Description

Standards
GB/T 8018，ASTM D525

Application
This instrument is used to determine the oxidation stability of gasoline by induction period method.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Maximum power consumption: 1800W
3. Temperature control: Rt. to 120℃(control point: 100℃,settable),±0.1℃
4. Pressure range: 0 to 1.6Mpa
5. Test vessels: 4pcs
6. Data storage: 5000pcs
7. Serial port: USB, RS485. For data download and print.
8. Working condition: 15 to 35℃, RH≤85%

Main technical features
1. Colored touch screen operation. Built-in IPC control. Full English display. Easy to use.
2. Metal-block bath heating. Rapid heating speed. High heating precision.
3. It can fill and discharge oxygen, judge and prompt leakage, measure result automatically. Data storage, fault alarm and system self-inspect functions are also configured. It can display the pressure and pressure curve in real time, automatically judge the turning point of the test, automatically judge the end of the measurement.
4. The pressure measurement part uses a 24-bit high precision ADC to achieve accurate measurement, while providing pressure calibration to the pressure sensor to ensure the accuracy of the pressure measurement throughout the range.
5. It can save about 5000pcs of test results.
