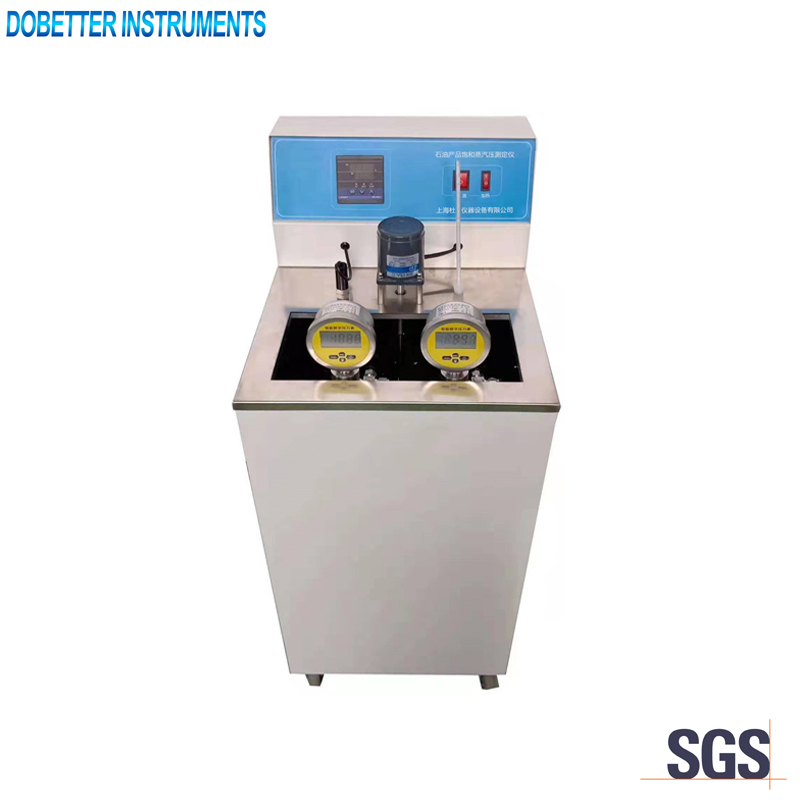

SDB-8017 Vapor Pressure Tester(Reid Method)

  • Description
  • Specifications&Features
  • Inquiry


GB/T 8017, ASTM D323


This instrument is used to determine the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products(not suitable for determining the vapor pressure of liquefied petroleum gas).

Main technical specifications

1. Power supply: AC(220±10%)V,50Hz
2. Heating power: 1600W
3. Temperature range: Ambient to 90℃
4. Temperature precision: ±0.1℃
5. Pressure guage precision: ±0.4%
6. Ambient temperature: (-10~35)℃
7. Relative humidity: ≤85%
8. Maximum power consumption: 1700W

Main technical features

1. Floor type structure design. Stainless steel material is used. Easy to operate and use.
2. A digital temperature controller is equipped to control the temperature in high precision which can meet the test requirements.
3. Two precise pressure gauges are equipped to detect the gas pressure inside the pressure bombs.
4. Two sets of single opening-end steam pressure bombs are equipped which can be placed in the instrument at the same time for synchronous test.
