GB/T 11132, ASTM D1319

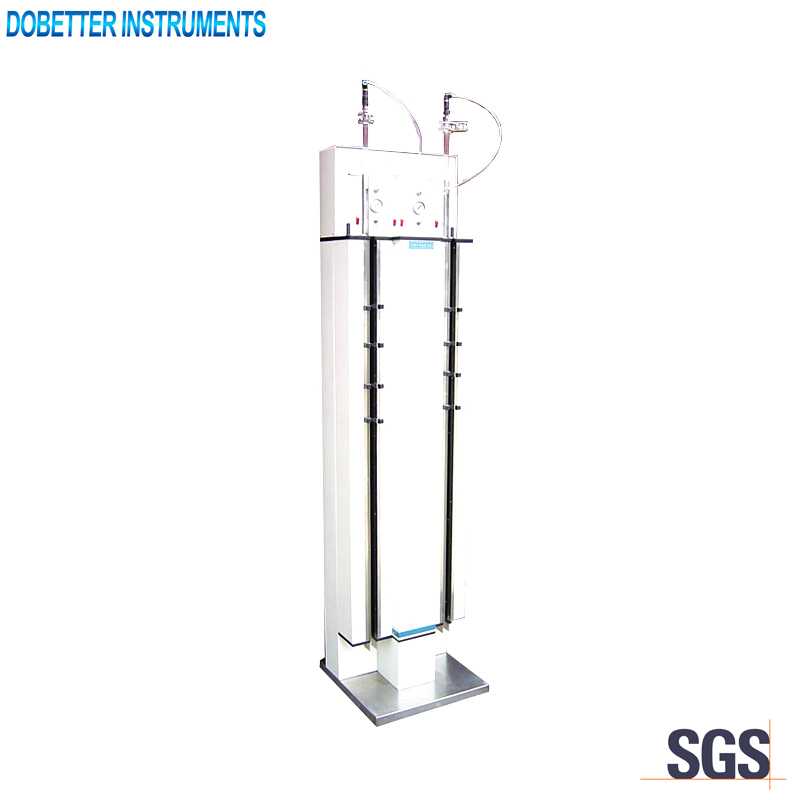

The instrument is suitable for the determination of the volume percentage content of the main hydrocarbons (aromatics, olefins and saturated hydrocarbons) in liquid petroleum products.

Main technical specifications

1. Power supply: AC220V±5%,50Hz
2. Pressure regulating range of reducing valve: (0~400)kPa
3. Electric agitator: Independently controlled for each way
4. Ultraviolet light source: 1220mm in length, wavelength is 365mm±5nm
5. Illuminating lamp: 1220mm in length, power is 40W
6. Air supply: Nitrogen cylinder (or air compressor, compressed air bottle)
7. Ambient temperature: (5~35)℃
8. Relative humidity: ≤85%
9. Dimension: 480mm×300mm×1870mm

Main technical features

1. UK brand of precision adsorption column and USA brand of fluorescence indicator are provided.
2. This instrument is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Sheltered UV-light source. No human body radiation .
4. Oil free low noise air compressor. No noise disturbance
5. The pointers in carbon types area are moveable. Convenient for operation.
