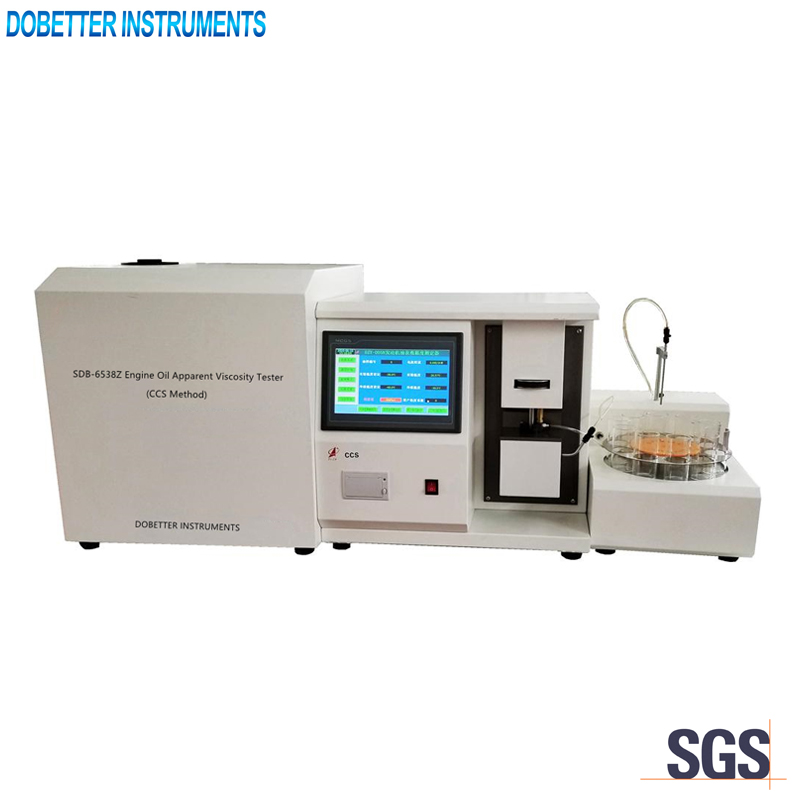

SDB-6538Z Engine Oils Apparent Viscosity Tester (CCS)

  • Description
  • Specifications&Features
  • Inquiry

GB/T 6538, ASTM D5293

This instrument is used to test the apparent viscosity of engine oils and base stocks by cold cranking simulator (CCS) at temperatures between -10 ℃ and -35 ℃. It is a high-end automatic instrument.

Main technical specifications
1. Power supply:  AC220V±10%, 50Hz
2. Maximum power consumption:  2200W
3. Temperature control of the circulatory cooling bath:  Rt. to -70℃; ±0.1℃
4. Temperature control of the stator:  - 40, -35, -30, -25, -20, -15, -10, -5℃; ±0.01℃
5. Viscosity measuring range:  1700 - 28000mPa.s
6. Test unit:  10 units
7. Data storage:  1000pcs
8. Calibration standards:  Cannon brand with certificates
9. Working condition:  15-35℃, RH≤85%

Main technical features
1. PLC control system. 7 inch Colored touch LCD. All test parameters can be displayed on the screen. Easy to use.
2. The test procedures are fully automatic including sampling. The automation is high.
3. 10 test units are euipped. The test effeciency is high.
4. Danfoss brand of compressor is equipped to unsure the good cooling performance.
5. Imported motor driver and stator are used to ensure good stability.
6. The test result can be saved and printed automatically.
