Description

Standards
GB/T 3535, ASTM D97

Application

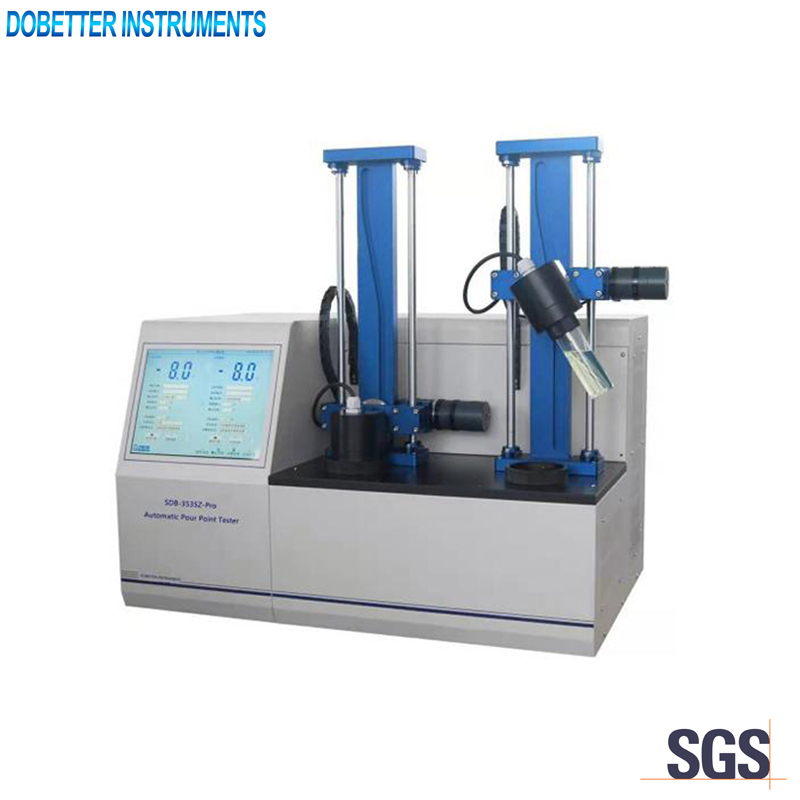

This instrument is used to determine the pour point of petroleum products.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Maximum power consumption: 1800W
3. Temperature range: -69 – 48℃
4. Temperature precision: ±0.5℃
5. Minimum test temperature: -56℃
6. Cooling speed: ≤15min by rapid testing function
7. Test unit: 2 units
8. Data storage: About 10000pcs
9. Working condition: 15-35℃, RH≤85%

Main technical features
1. Built-in IPC control technology with Window system. Colored touch LCD. It can lift up, incline and test sample automatically. Meanwhile it can make timing, judge the pour point, record and print the test result automatically. Easy to use.
2. It has a rapid testing function. The lowest bath temperature can be set according to the expected pour point. The sample can be cooled rapidly and the test time will be shortened.
3. It has a self-diagnostic function to determine the working state of the instrument.
4. International brand of glass temperature sensor ensures a higher test precision.
5. Metal-block bath and Danfoss brand of compressor are used to ensure a good cooling performance.
6. Double baths with double test units. The temperature in each bath can be controlled independently. Two samples can be test at a time.
7. The test result can be printed by the external printer.
8. RS-232, EMAC and USB ports are equipped on the instrument for data download. The software can be upgraded. The test data can also be uploaded to LIMS(Model SDB-3535Z-Pro, customizable).
