Standards
GB/T 261, ASTM D93
Application

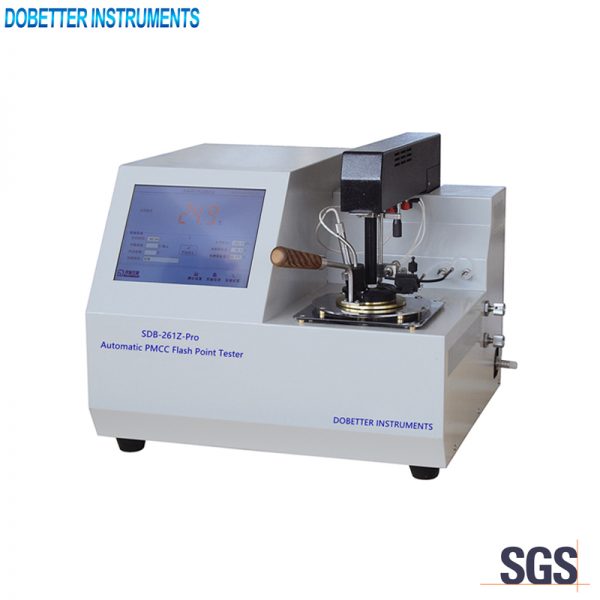

This instrument is used to determine the flash point of petroleum products in the temperature range from 40℃ to 300℃. It is a high-end automatic instrument.
Standards
GB/T 261, ASTM D93
Application
This instrument is used to determine the flash point of petroleum products in the temperature range from 40℃ to 300℃. It is a high-end automatic instrument.
Main technical specifications
1. Power supply: AC 220V±10%, 50Hz/60Hz
2. Maximum power consumption: 500W
3. Measuring range: 40 - 370℃
4. Temperature resolution: 0.1℃
5. Repeatability&reproducibility: ≤2℃(R) & 4℃(r)
6. Flash point detecting mode: Standard mode / Customer mode
7. Temperature sensor: Pt100, Imported
8. Heating rate: Procedure A: (5-6)℃/min, Procedure B: (1-1.5)℃/min, Procedure C: (2.5-3.5)℃/min
9. Stirring rate: Procedure A: (90-120)r/min, Procedure B: (250±10)r/min, Procedure C: (90-120)r/min
10. Ignition method: Gas or electronic, switchable
11. Gas source: LPG, butane gas, pipeline gas, natural gas (pressure <10 kPa)
12. Display: 7-inch color touch LCD
13. Data storage: Over 10000pcs
14. Data output: USB/LIMS(customizable)
15. Communication port: RS485, RJ45
16. Safety functions: Automatic shutdown and alarm upon reaching the limit temperature/Forced air cooling/Gas spraying extinguishment. Note: Flash point detecting safety limit: EFP+20℃. Absolute safety limit: 400℃.
17. Working condition: 10-35℃, RH≤85%
18. Dimension and net weight: 265 mm × 525 mm × 365 mm, 20Kg
Main technical features
1. 7 inch color touch LCD. Built-in computer control. English display. It can show all test parameters on the screen. Easy to use.
2. The heating, test arm lifting-up, test arm lowering-down, flash point measuring and forced air cooling are all automatically finished.
3. Built-in BARO sensor. It can correct the test result according to the detected atmospheric pressure automatically.
4. It can save at least 10000pcs of test results. RS-485,RJ45 are equipped on the instrument for data export. The software can be upgraded. The test data can be uploaded to LIMS(Model SDB-3536Z-Pro, customizable).
5. Gas ignition and electric ignition are switchable.
6. Kinds of safety functions are set up in the instrument for a safer operation to the user.
