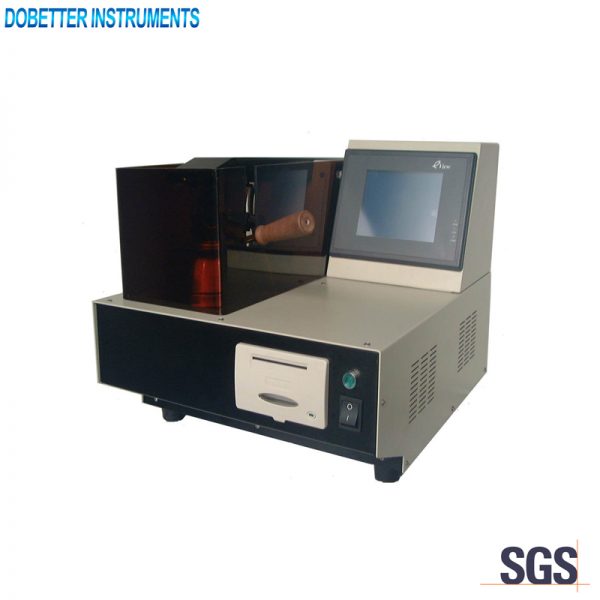

SDB-170B Automatic Abel Closed Cup Flash Point Tester

Description

Standards

GB/T 21789, ISO 13736, ISO1516, ISO1523, IP170

Application

This instrument is used to determine the closed-cup flash point of combustible liquids having flash point between -30℃ to 75℃.

Main technical specifications

1. Power supply: AC220V±5%, 50Hz
2. Maximum power consumption：800W
3. Measurement range：5～110℃
4. Temperature precision：±0.1℃
5. Repeatability&reproducibility：In accordance with ISO13736, ISO1516,
ISO1523 and GB/T 21789 and IP170
6. Heat source：Civil gas
7. Heating rate：Settable as per different standard test methods
8. Stirring rate：0～30RPM.
9. Cooling method：Peltier semiconductor refrigeration, metal-block cryostat.
10.Data saving：100pcs
11.Printing： Built-in Printer
12.Cooling down：Forced air cooling
13.Ambient temperature：10℃~35℃
14.Relative humidity：≤85%

Main technical features

1. Colored touch-screen operation. Fully-automatic. All test procedures are shown on the screen.
2. Test modes:
(1) Standard mode: IP 170, Option modes: ISO13736, ISO1516, ISO1523 and GB/T 21789.
(2) Expected flash point searching mode: It can search the unknown expected flash point rapidly by this test mode.
(3) User-defined: User can set the heating rate and flash detection as per different requirements by this test mode.
3. The main components of the instruments adopt international brands to ensure the performing reliability and stability.
4. Self-test diagnostics and warning functions are set in the instrument.
