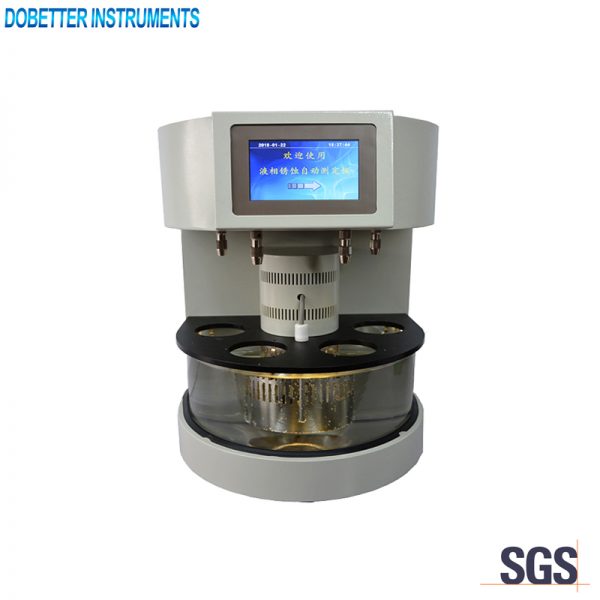

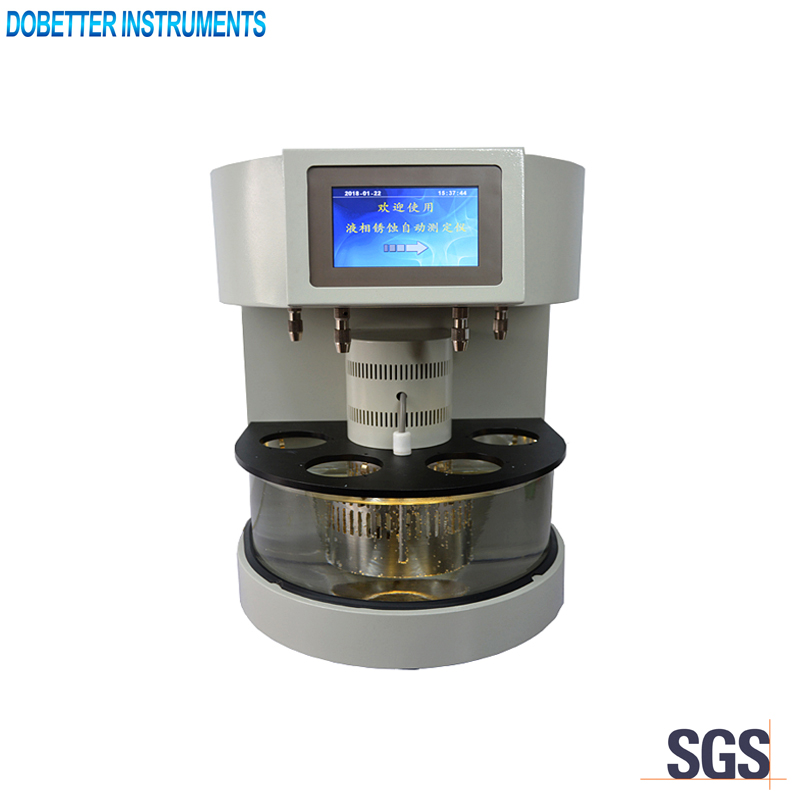

SDB-11143A Lubricating Oils Rust-preventing Characteristics Tester

SDB-11143A Lubricating Oils Rust-preventing Characteristics Tester

  • Description
  • Specifications&Features
  • Inquiry

GB/T 11143,ASTM D665

This instrument is used to determine the ability of inhibited mineral oils, particularly steam-turbine oils, to aid in preventing the rusting of ferrous parts should water become mixed with oil. It can also be used to determine other oils, such as hydraulic oils, circulating oils and heavier-than -water fluids.

Main technical specifications

1. Power supply: AC (220±10%) V, 50Hz
2. Temperature range: Ambient to 100℃
3. Temperature precision: ±0.05℃
4. Stirring time: 0∼99h,settable
5. Stirring rate: (1000±20) r/min
6. Heating power: 2000W
7. Ambient temperature: 5~ 40℃
8. Relative humidity: ≤85%

Main technical features

1.5 inch colored touch LCD. Easy to operate.
2.Four samples can be tested at the same time.
3.PID control technology. The temperature control precision.
4.The stirring and temperature control are both automatic. It can prompts the operation. The automation degree is high.
5.Imported brand of Pt100 temperature sensor. The temperature precision is high.
6.Parameters can be set and saved. 500pcs of test data can be stored.
