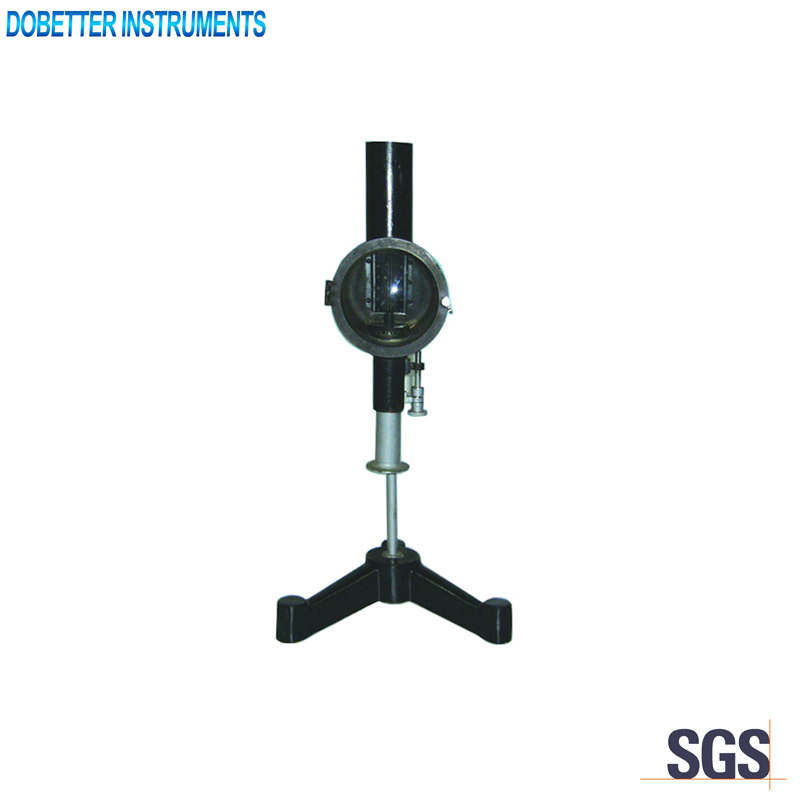

SDB-382 Smoke Point Tester

Main technical specifications
1. Measuring range: 0 to 50 mm
2. Numbers marked: Every 10 mm
3. Candle lifting stand stroke range: 10 mm, with smooth and uniform movement
4. Wick guide stretches: 6 mm from the top
5. 25ml Oil conservator (noumenon) inner diameter: φ21.25 ± 0.05 mm
6. 25ml Oil conservator (noumenon) length: 109.0 ± 0.05 mm
7. Wick tube inner diameter: φ4.7 ± 0.05 mm
8. Wick tube length: 82.0 ± 0.005 mm
9. Air tube inner diameter: φ3.5 ± 0.05 mm
10. Air tube length: 90.0 ± 0.05 mm
11. Dimension: 510mm × 310mm × 290 mm
12. Weight: 7 Kg

Main technical features
1. The instrument consists of bottom case,oil conservator stand, oil conservator, terrace, wick pipeline, ruler and smoke flue.
2. The oil conservator is composed by wick tube and air tube. The wick tube is tightened in the oil conservator. Then, install the oil conservator in the smoke point lamp.
3. The stroke adjustment range of the oil conservator lifting device is 0-10mm. Convenient and flexible to operate.
4. The bottom case is composed by wick pipeline and ruler.The measuring range of the ruler is 0-50mm,easy to observe.
5. Reasonable design with safe and reliable operation, attractive appearance.
