Description

Standards
GB/T 7305, ASTM D1401

Application

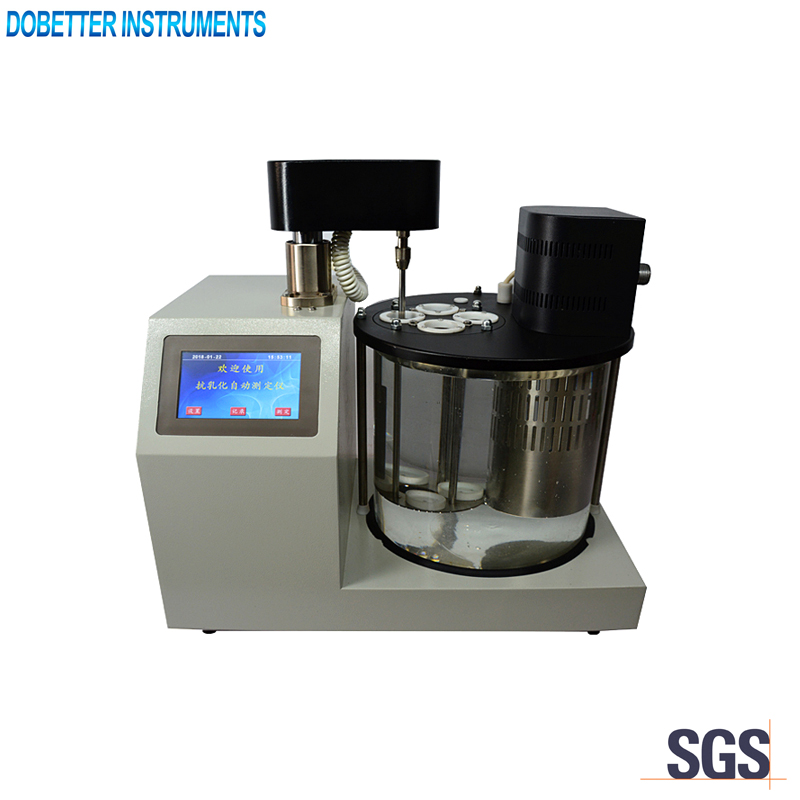

This instrument is used to determine the ability of petroleum oils or synthetic fluids to separate from water. Although developed specifically for steam-turbine oils having viscosities of 28.8–90 mm2/s at 40°C, this test method may be used to test oils of other types having various viscosities and synthetic fluids at other test temperatures.

Main technical specifications

1. Power supply: AC (220±10%) V, 50Hz
2. Temperature range: Ambient to 110℃
3. Temperature precision: ±0.05℃
4. Stirring time: 0∼99m,settable
5. Timing range: 0∼99h,settable
6. Stirring rate: (1500±15) r/min
7. Heating power: 2000W
8. Ambient temperature: 5~ 40℃
9. Relative humidity: ≤85%

Main technical features

1. 5 inch colored touch LCD. Easy to operate.
2.Four samples can be test at the same time.
3.PID control technology. The temperature control precision.
4.The stirring unit rises up and lowers down automatically. The mechanical motion is noiseless. Stable and reliable.
5.Imported brand of Pt100 temperature sensor. The temperature precision is high.
6.Parameters can be set and saved. 500pcs of test data can be stored.
