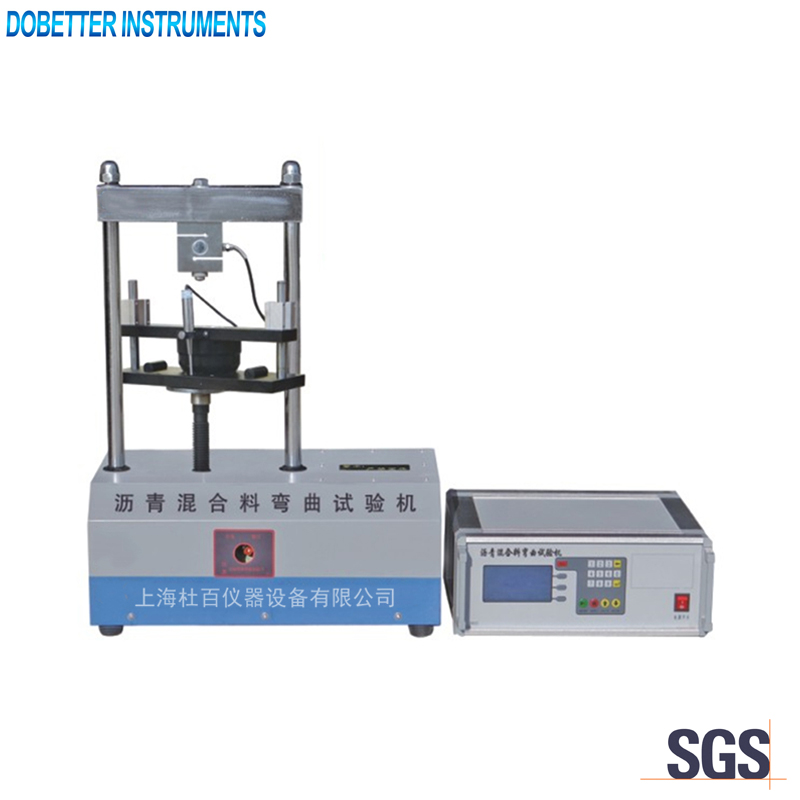

SDB-0715 Asphalt Mixtures Bending Tester

  • Description
  • Specifications&Features
  • Inquiry


JTG E20-2011 / T 0715


This instrument is used to measure the mechanical property of bending breaking of hot mix asphalt mixtures at specified temperature and accelerated rate.

Main technical specifications

1.Lifting speed of breaking head: 50±5mm/min
2.Breaking head: Standard little beam clamp
3.Maximum force loading: 50kN
4.Force precision: 1%
5.Flow value range:0 ~15.00mm
6.Flow value precision: 0.05mm
7.Maximum power consumption: 700W
8.Power supply: AC220V±10%,50Hz

Main technical features

1.Over loading protection and lifting limit production are set.
2.The instrument does the test automatically. It shows the curve and breaking point and deformation number of loading.
3. 15 pcs of test data can be saved and printed.
4. Serial port and PC software are optional for data analyzing and processing.
