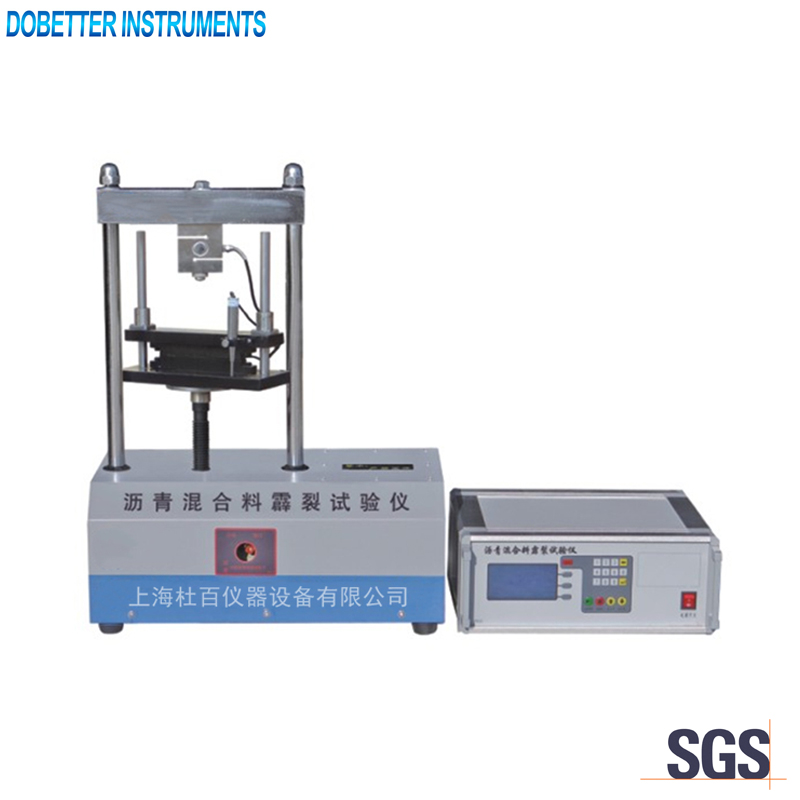

SDB-0716 Asphalt Mixtures Indirect Tension Tester

SDB-0716 Asphalt Mixtures Indirect Tension Tester

  • Description
  • Specifications&Features
  • Inquiry


JTG E20-2011 / T 0716


This instrument is used to determine the resilient modulus values of asphalt mixtures.

Main technical specifications

1.Lifting speed of breaking head: 50±5mm/min
2.Breaking head(upper&lower part):(101.6±0.2)mm and (152.4±0.2)mm
3.Maximum force loading: 50kN
4.Force precision: 1%
5.Flow value range:0 ~15.00mm
6.Flow value precision: 0.05mm
7.Maximum power consumption: 700W
8.Power supply: AC220V±10%,50Hz

Main technical features

1.Over loading protection production is set.
2.The instrument does the test automatically. It shows the curve and breaking point and deformation number of loading.
3. 15 pcs of test data can be saved and printed.
4. Serial port and PC software are optional for data analyzing and processing.
