SH/T 0326, ASTM D1263

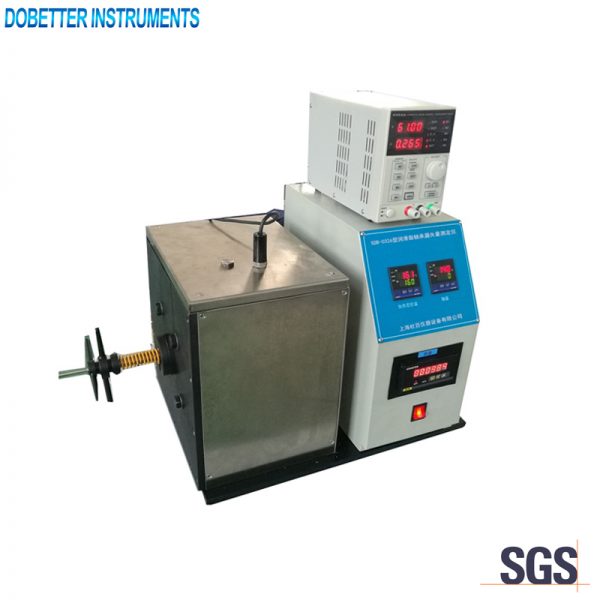

This instrument permits differentiation among products having distinctly different leakage characteristics.

Main technical specifications
1. Power supply: AC220V, 50Hz
2. Heating bath: metal-block bath
3. Temperature control mode: Import PID temperature controller
4. Temperature range: Ambient to 150℃,±0.5℃
5. Timekeeping: A digital counter
6. Timing range: 0.01s~99h99m
7. Motor speed: 660r/min±30r/min
8. Maximum power consumption: 1000W

Main technical features
1. Instrument with integrated design, simple structure, easy to operate.
2. Unique heat pipe rod inserted casting box heating system, so that rapid heating rate, temperature control and high accuracy.
3. Imported motor rotation, low noise, speed and stability, good mechanical properties and small wear.
4. Compact rotating hub and the shaft assembly structure, end clearance small, bearings are used imported components, reliability and wear resistance guaranteed.
5. Microcomputer temperature controller, digital display, accuracy ± 0.5 ℃, PT100 sensor.
6. Digital timer records the test time.
7. A thermometer hole is set on the shaft assembly.
