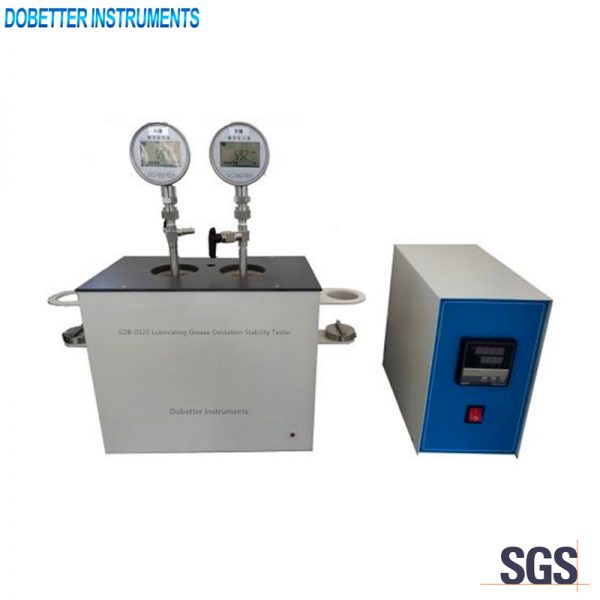

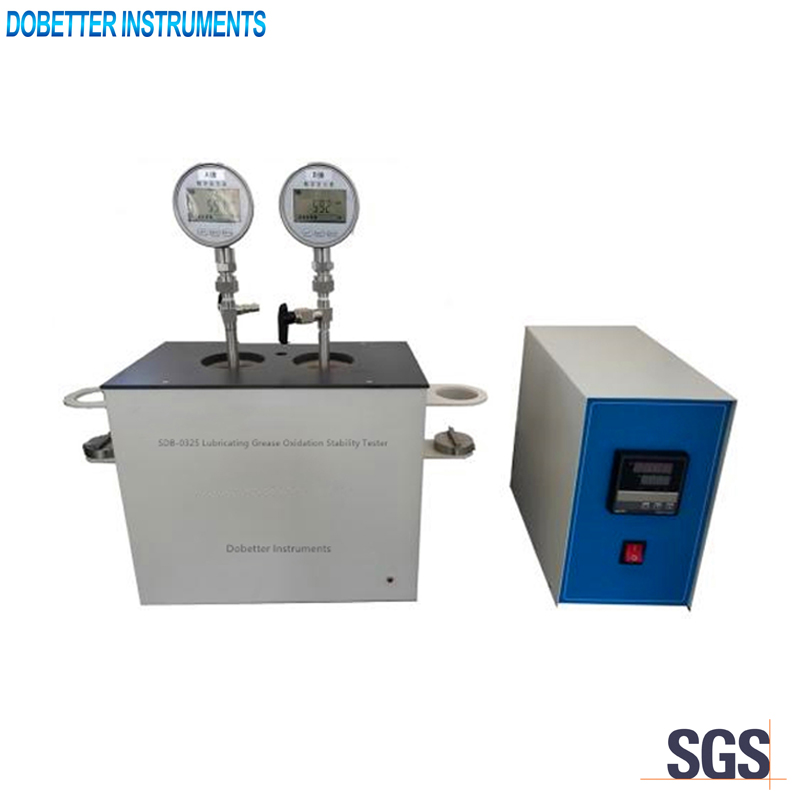

SDB-0325 Lubricating Grease Oxidation Stability Tester

  • Description
  • Specifications&Features
  • Inquiry

SH/T 0325, ASTM D942, IP142

This instrument is used to measure the net change in pressure resulting from consumption of oxygen by oxidation and gain in pressure due to formation of volatile oxidation by-products

Main technical specifications
1. Power supply: AC (220±10%) V, 50Hz
2. Temperature range: Ambient to 150℃
3. Temperature precision: ±0.1℃
4. Test unit: 2 units
5. Heating power: 1800W
6. Ambient temperature: (Room temp.~35)℃
7. Relative humidity: ≤85%

Main technical features
1. Separate design, the main machine is not disturbed.
2. PID temperature control technology. High precision and stability.
3. Over temperature protection function is set to protect the human safety.
4. Double-unit design. Convenient for parallel test.
