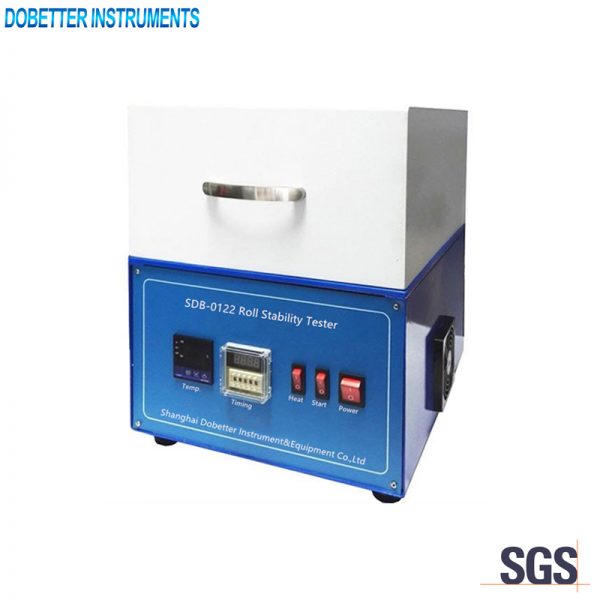

SDB-0122 Lubricating Grease Roll Stability Tester

Standards

SH/T 0122, ASTM D 1831

Application

The instrument is used to determine the changes in the consistency, as measured by cone penetration,of lubricat-inggreases when worked in the roll stability test apparatus.

Main technical specifications
1. Power supply： AC220±10%，50Hz
2. Temperature range in the tank： Ambient～80℃
3. Rolling rate： 165±15r/min
4. Amount of rolling cylinder： 2 cylinders
5. Roller： Φ90×180mm，5kg, stainless steel
6. Heating mode： PTC ceramic heating.
7. Timing unit： Digital timer

Main technical features
1. Microcomputer temperature controller.
2. Digital display. ±5℃ precision.
3. Digital timer records the working time with a buzzer.
4. Belt drives the rolling. Two cylinders can be tested at a time.
5. A thermometer holder is on the cover. Locating ring is equipped on the free-rolling wheel to control the rolling cylinders work normally.
