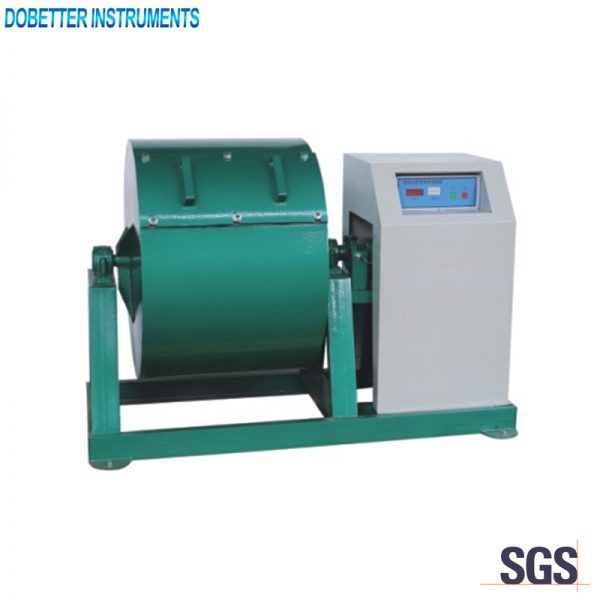

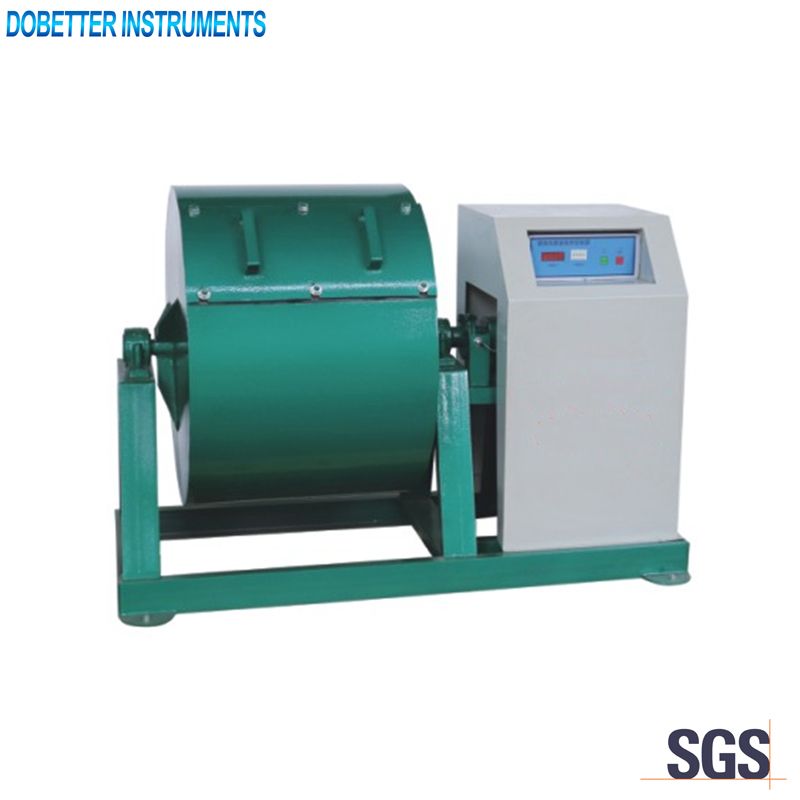

SDB-0317 Los Angeles Abrasion Testing Machine

  • Description
  • Specifications&Features
  • Inquiry

Standard
JTG E42-2005 / T0317

Application
The instrument is used to test the weared stone value(WSV) of coarse aggregate.

Main technical specifications

1. Power consumption:   6KW
2. Power supply:   AC380V±10%(3-phase), current≤ 20A
3. Size and weight:   1220 * 840 * 1030 (mm), 220kg
4. Diameter and length of the vessel:   710 * 510 ± 5 mm
5. Rolling speed:   30-33r/min
6. Counter:   5-digit number(settable)
7. Steel ball:    φ 48mm
8. Working condition:    Ambient temperature ≤ 35℃, RH≤ 85%

Main technical features

1. Made of good quality steel material. No deformation.
2. Intelligent control system makes the test stable and reliable.
