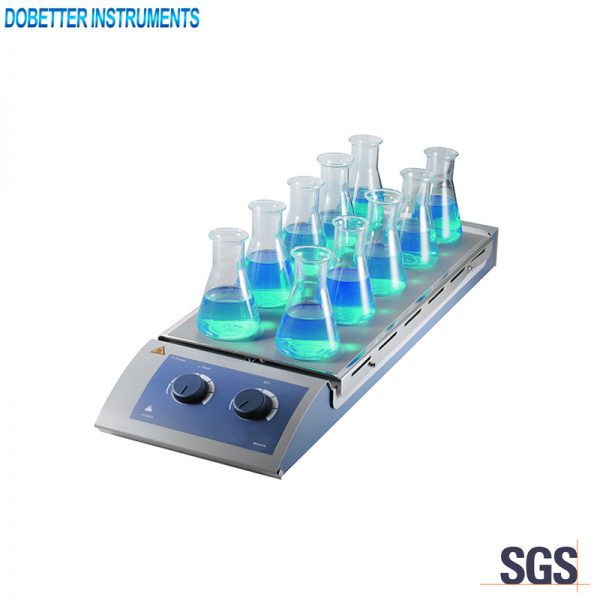

MS-H-S10 Hotplate Stirring Unit

  • Description
  • Specifications&Features
  • Inquiry

MS series magnetic hotplate stirring units are laboratory instruments used for liquid mixing, mainly for stirring or simultaneously heating and stirring liquids or solid-liquid mixtures with low viscosity.

Main technical specifications
1. Dimension of the working plate:180×450mm
2. Material of the working plate:Stainless steel cover with silicone
3. Input power of the motor:12w
4. Output power of the motor:4w
5. Heating power:470W
6. Maximum power consumption:490W
7. Stirring point:10 points
8. Stirring range:0~1100rpm
9. Maximum stirring capacity(H2O):0.4L×10
10. Temperature range:Ambient to 120℃
11. Over temperature protection:140℃
12. DIN EN60529 protection:IP42
13. Overall dimension and net weight:182×622×65mm,3.2kg
14. Ambient temperature:5℃~40℃
15. Power supply: AC220±5%, 50/60Hz

Main technical features
1. A brushless DC motor is equipped. No need of maintenance and no spark.
2. The closed type outer shell adopts DIN/EN 60529: IP42 to ensure the operation safety.
3. The working plate adopts stainless steel with silicone coating. The outer shell adopts aluminum alloy. Good heating uniformity and anti-corrosion.
4. It can stir up to 10 flasks of samples. The work efficiency is high.
