Description

Standards

GB/T 11061.4, GB/T 6324.4-1986, GB/T 12688.6-1990, GB/T 11141, SH/T 1757-2006, GB/T 18612-2011, GB/T 3208-2009, SH/T 1147-2008, SH/T 0253, SH/T 0254, SH/T 0657, ASTM D3120, ASTM D3246, ASTM D5808-03, ASTM D5808-09a, ASTM D5194-06.

Application

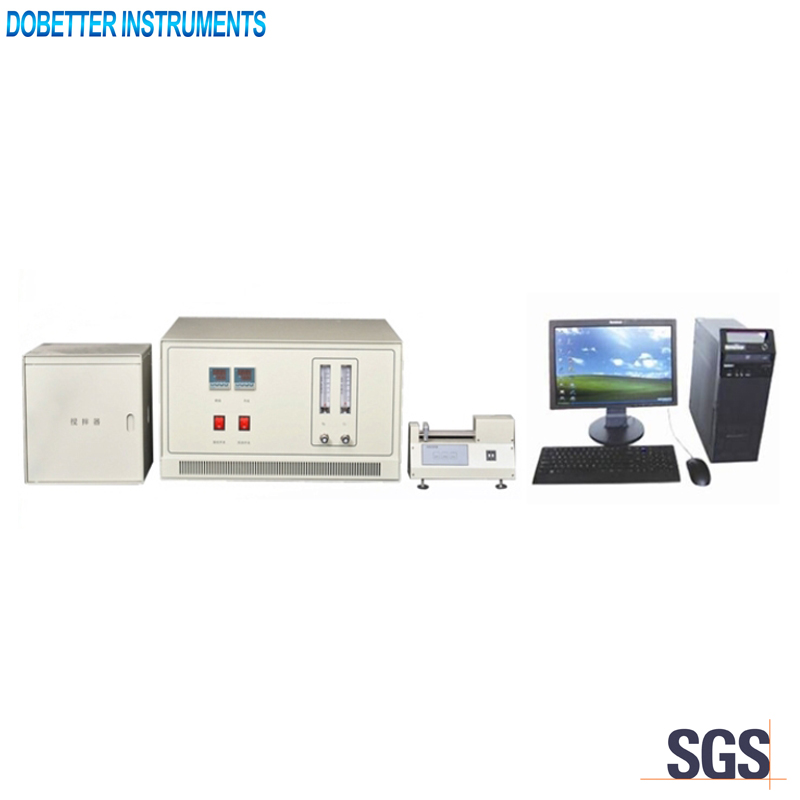

This instrument is used to determine the mass% of total sulfur and chlorine in petroleum products.



Main technical specifications

1. Bias voltage range: (0~496)mV
2. Measurement range: S :(0.2~5000) ng/μL (high concentration can be diluted)
Cl :(0.3~5000) ng/μL (high concentration can be diluted)
3. Air source requirements: nitrogen and oxygen
4. Measurement precision:

Concentration (ng/μL) Volume (μL) RSD (%)
0.2 10 35
1.0 10 10
100 5 5
1000 5 2

5. Temperature range and precision: Ambient~1000℃, ±1℃
6. Power supply: AC(220±10%)V, 50Hz
7. Maximum power consumption: 3500W
8. Kinds of sample: solid, liquid and gas.

Main technical features

1. Wide application scope and good adaptation. It can be used to determine the sulfur or chlorine in liquid, gas or solid materials. Note: Solid sample injector and gas sample injector are optional.
2. It can finish the data collection, processing , saving automatically.
3. Only 10 μl sample is used for each test. The test is rapid. Only 1-2 minutes for each sample.
