Description

Standards
GB/T 265, GB/T 30515, ASTM D445, ASTM D446

Application

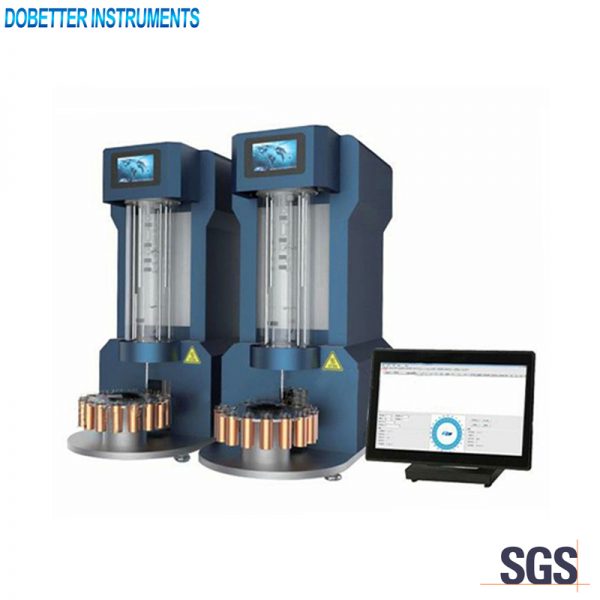

This instrument is used to determine the kinematic viscosity of petroleum products. It is a high-end automatic instrument.

Main technical specifications
1. Power supply: A C 220V±10%, 50Hz
2. Maximum power consumption: 1000W
3. Measuring range: 0.3-10000mm2/s(cSt)
4. Automatic sampling capacity: 16×2
5. Temperature range and precision: 20-120℃,±0.01℃
6. Temperature sensor: Pt1000
7. Sample preheating range and rate: Rt. to 120℃, 15℃/min.
8. Liquid level detection: Electro-optic
9. Timing precision: 0.01S
10. Sample volume: About 15ml
11. Working efficiency: Up to 6 tests per hour
12. Working condition: 15-30℃, RH≤80%

Main technical features
1. PC control technology. Windows operation system. Friendly human-machine interface. The whole test(preheating, sampling, measurement, calculation, cleaning and drying) can be controlled automatically. Easy to use.
2. Double-unit design. The two tests can be controlled separately.
3. Electro-optic detection. It can test various of oils both transparent and opaque accurately.
4. Two 16-position sample carousels. Automatic sampling. No need for human intervention.
5. The PTC Intelligent preheating function can reduce the sample preheating dramatically.
6. The Peltier system uses bath medium as the cooling medium. The cooling speed is fast.
7. The double overtemperature protection by software and hardware, dry burning protection, lack of cleaning fluid prompt, waste fluid cleaning prompt are equipped for safe operation.
