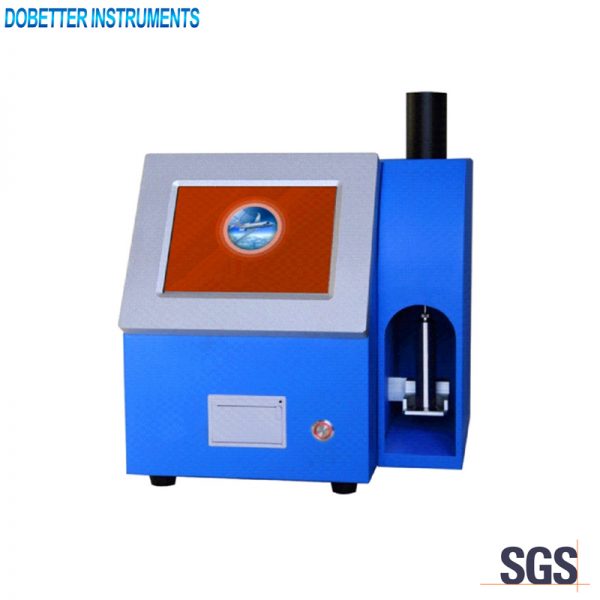

SDB-382A Automatic Smoke Point Tester

Description

Standards
GB/T 382, ASTM D1322

Application
This instrument is used to determine the smoke points of relative smoke producing properties of kerosines and aviation turbine fuels.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz.
2. Maximum power consumption: 300W.
3. Measuring precision: ±0.1mm
4. Atmospheric pressure detection: Automatic detection, precision ±0.01KPa.
5. Test duration: ≤10min.
6. Temperature detecting range: -40 to 60℃, ±0.1℃.
7. Humidity detecting range: 0-100% RH, ±2% RH.
8. Data storage: 2000pcs.
9. Data transfer: USB×3, RS232×1, Ethernet RJ45(optional)×1.
10. Data printing: Built-in micro printer is equipped. USB printer is optional.
11. Working condition: 15 – 35℃, RH≤85%.

Main technical features
1. Built-in PC technology. Colored touch LCD. Fully automatic analysis. It displays all test procedures in real time. Easy to use.
2. Highly advanced machine-vision technology is adopted to ensure a high measuring precision. No manual error.
3. The main components of the instruments adopt international brands to ensure the performing reliability and stability.
4. The test results can be saved in and called out from an efficient database in the instrument. The data can be printed by a built-in micro printer or an optional USB printer. The data can also be uploaded to LIMS (customizable).
