Description
Standards
GB/T 21929，ASTM D56
Application

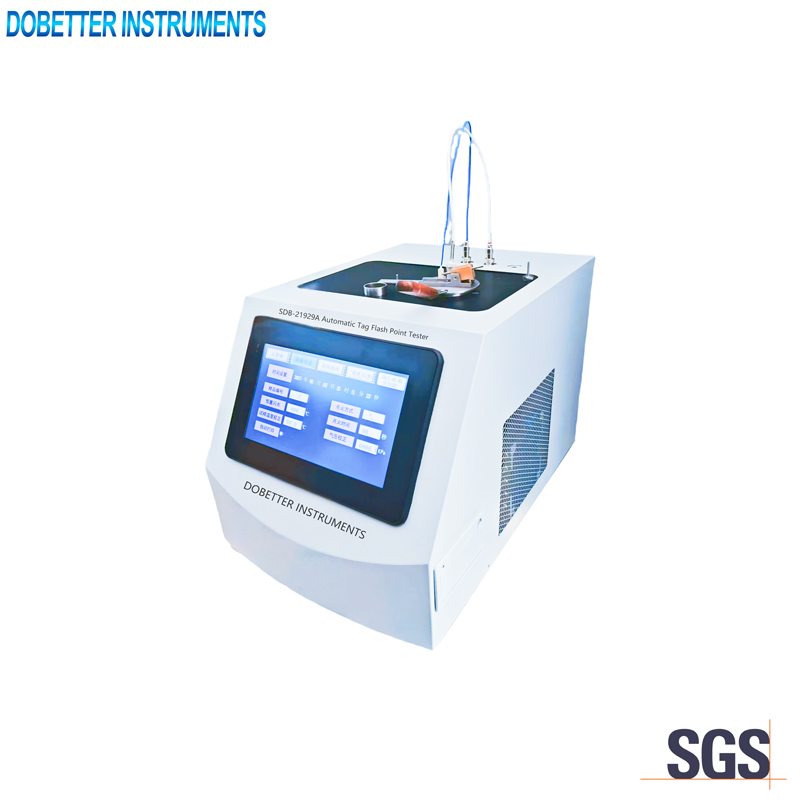

This instrument is used to determine the flash point, by Tag automatic closed tester, of liquids with a viscosity below 5.5 mm2/s (cSt) at 40 °C (104 °F), or below 9.5 mm2/s (cSt) at 25 °C (77 °F), and a flash point below 93 °C (200 °F).
Main technical specifications
1. Power supply: AC220V±10%, 50Hz±5%
2. Max. power consumption: 1200W
3. Temperature range: -40 to 110℃
4. Temperature resolution: ±0.1℃
5. Heating rate: 3℃/min, 1℃/min
6. Ignition source: Gas
7. Cooling method: Built-in compressor
8. Data storage: 1000pcs
9. Working condition: 15 to 40℃, RH≤85%
Main technical features
1. 10 inch colored touch LCD operation. Chinese&English language are alternative. The test can be done automatically after set the expected flash point. Easy to use.
2. All-in-one structure design. A built-in compressor is equipped for cooling. No need to use an external chiller.
3. The chip of Pt100 sensor, the barometric pressure sensor and the compressor are all imported from famous company of Germany, USA and Japan.
4. 1000pcs of test results can be saved, called out and printed. The preset parameters can be memorized before each shutdown.
5. The system can do self-inspection after powering on. If there is any fault, it will give prompts automatically.
