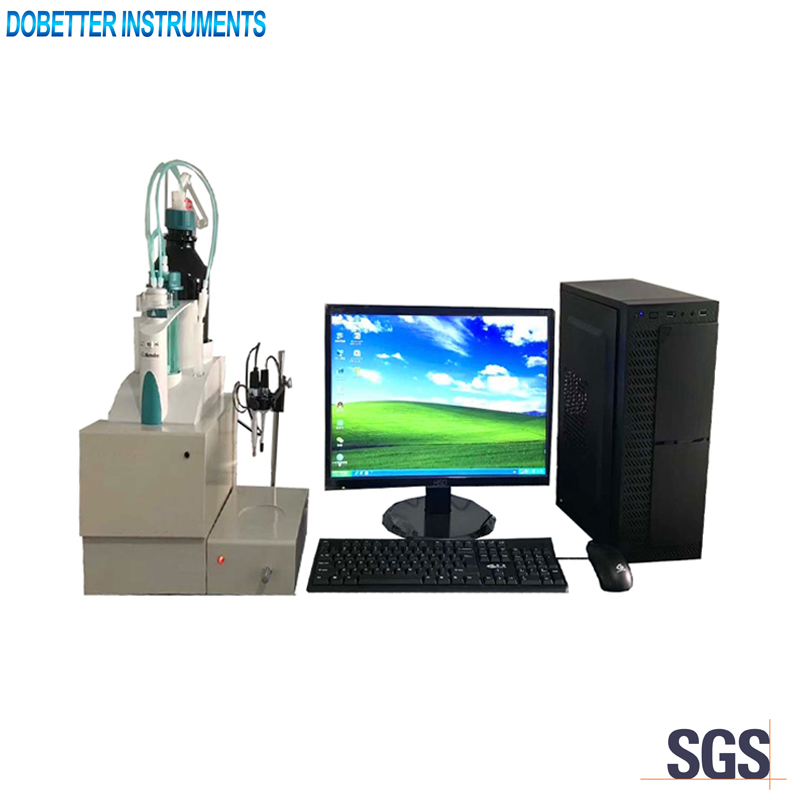

SDB-1792A Automatic Mercaptan Sulfur Analyzer

Description

Standard
GB/T 1792, ASTM D3227

Application
This instrument is used to determine mercaptan sulfur in the jet fuels, gasolines, kerosenes and light diesels.

Main technical specifications
1. Measuring range： 0.0003%～0.01 %(mm)/(3～100)μg/g(ppm)
2. Basic bias of electronic unit： 0.1%±0.5Mv
3. Input impedance： ≥1×1012Ω
4. Burette volume： 10ml
5. Burette precision： ±0.1%(F•S)
6. Potential measuring range： 0～±1999.5mV
7. Power supply： AC 220V±10V, 50Hz±0.5Hz
8. Dimension： 350*280*178(mm)
9. Net weight： 10kg

Main technical features
1. Windows operation system is provided on PC.
2. Metrohm brand titration unit is equipped.
3. Little sample needed for each test(≤5g) and rapid test speed(about 5 min)
4. Automatic end point detection. Automatic false end point filtering.
5. Data saving and printing.
6. Multi-parameter setting and revising.
7. Liquid feeding at set value.
8. Automatic cleaning.
