SH/T 0770, ASTM D5972

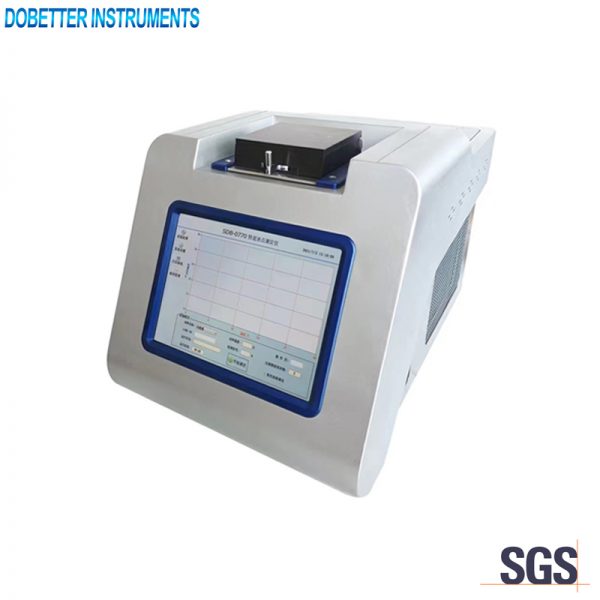

This instrument is used to determine the freezing point of aviation fuels by automatic phase transition method. It is a high-end automatic instrument.

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Maximum power consumption: 600W
3. Measuring range: -80 – 10℃
4. Sample amount: 1ml
5. Test duration: 10-20min
6. Data storage: About 10000pcs
6. Working condition: 15-35℃, RH≤85%

Main technical features
1. Built-in PC technology. Colored touch LCD. All parameters and curve can be displayed on the screen. Easy to use.
2. Optical principle. It can detect the change of the oil sample precisely and give the test result automatically.
3. The self-developed software realizes the rapidity, intellectualization and automatiion to the freezing point test.
4. Rapid test speed and small sample amount is needed for each test.
5. International brands of core components make the test precision high and stable.
6. Large database. It can save about 10000pcs of test results. The test data can be uploaded to LIMS(Model SDB-0770-Pro, customizable).
