JTG E20-2011 / T 0722

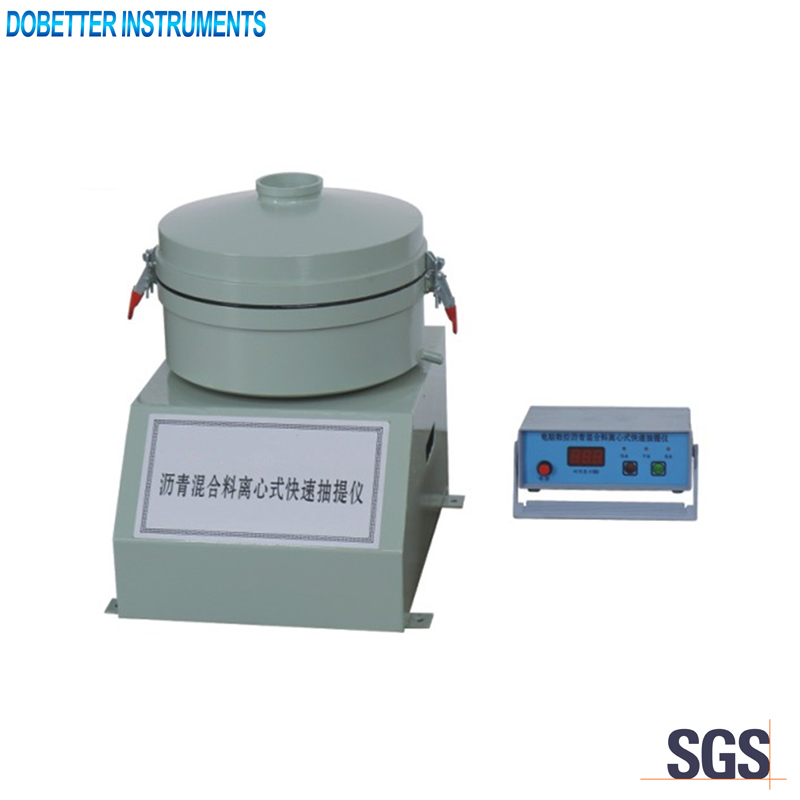

This instrument is used for the quantitative determination of asphalt binder content in asphalt mixtures and pavement samples.

Main technical specifications

1. Rated speed: 3000r / min
2. Power supply: AC220V, 50Hz
3. The chamber capacity: 1500g(Model SDB-0722-1) or 3000g(Model SDB-0722-2)
4. Chamber diameter: 280mm
5. Maximum power consumption: 550W(Model SDB-0722-1) or 750W(Model SDB-0722-2)
6. Dimension and weight: 600 * 440 * 620mm, 60kg

Main technical features

The device adopts stepless speed control, with fast separation speed, simple detection process, energy saving, stable performance and weight light, small size, low noise and other advantages. It is 10 times more effective than traditional distillation. It is most suitable for the construction supervision of road engineering and the field rapid detection of asphalt mixture manufacturers.
