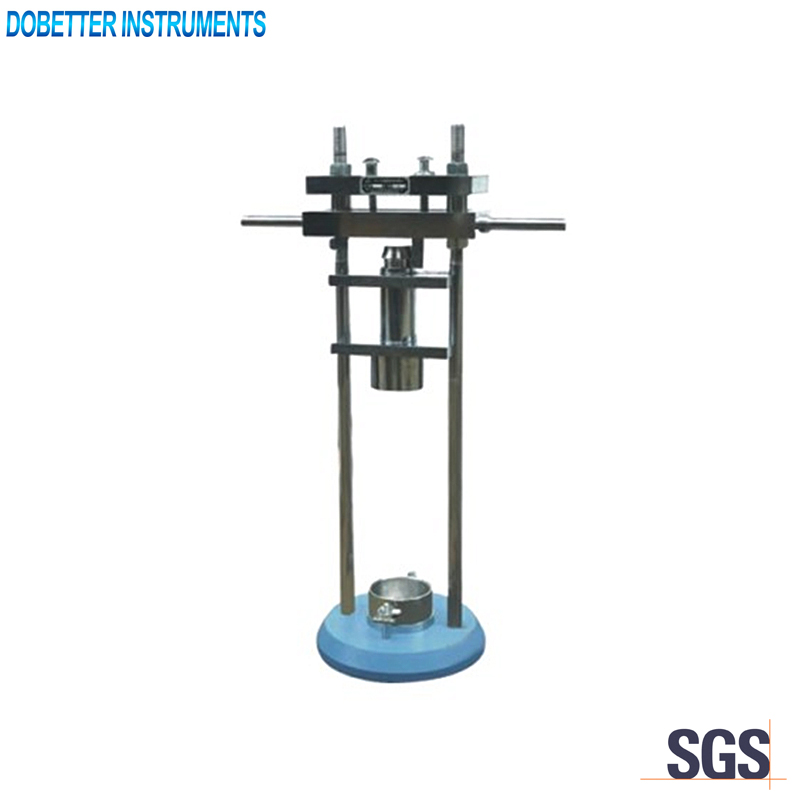

SDB-0322 Coarse Aggregate Lashed Stone Value Tester

Standard
JTG E42-2005 / T0322

Application
The instrument is used to test the lashed stone value(LSV) of coarse aggregate.

Main technical specifications

1. Weight of impact hammer:   13.75±0.05kg
2. Fall route:   380±5mm
3. Dimension of cup:   φ102 *50mm
4. Test sieve:   15.0mm, 10.0mm, 2.5mm
5. Period:   180 times / min ± 2 times / min
6. Metal rod： φ10 *230mm
7. Metal round cylinder： φ75*50±1mm
8. Overall dimension and weight： 400*400*900mm, 45kg
