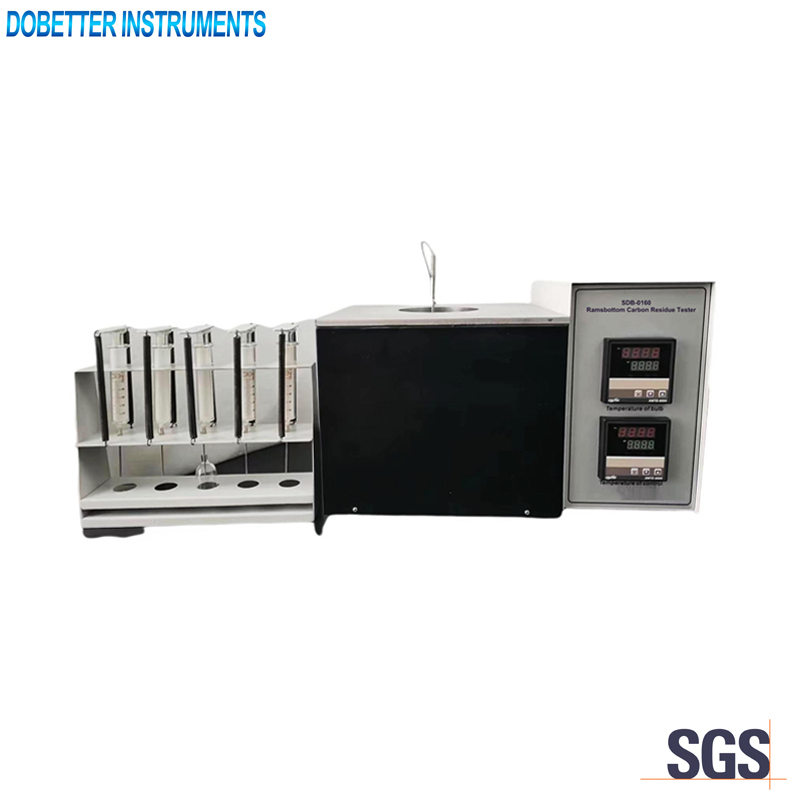

SDB-0160 Ramsbottom Carbon Residue Tester

Description

Standards
SH/T 0160, ASTM D524

Application
This instrument is used to determine the amount of carbon residue left after evaporation and pyrolysis of petroleum oils.

Main technical specifications
1. Power supply：AC220V±10%, 50Hz
2. Maximum power consumption：2000W
3. Temperature range：Ambient～550℃
4. Temperature precision：≤±5℃
5. Coking furnace：Metal furnace
6. Heating mode：Electric heating
7. Test unit：5 units
8. Ambient temperature: (Room temp.~35)℃
9. Relative humidity： ≤85%

Main technical features
1. The coking furnace adopts the metal furnace in accordance with environmental protection.
2. The instrument adopts electric heating method and digital PID temperature controller. Japanese Fuji brand of temperature controller is adopt to ensure the high precision.
3. The instrument adopts detachable receiver, which is easy to use.
