SDB-508 Ash Content Tester

Standards

GB/T 508, ASTM D482

Application

This instrument is used to determine the ash in the range 0.001-0.180 mass %, from distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and other petroleum products, in which any ash-forming materials present are normally considered to be undesirable impurities or contaminants.

Main technical specifications
1. Electric Muffle furnace
(1) Power supply:  AC220V±10%, 50 Hz
(2) Rated power:  2.5 kW
(3) Controlled temperature:  (775±25)℃
(4) Temperature rising time of empty chamber:  ≤50 min
(5) Furnace temperature uniformity:  ≤15℃
(6) Size of furnace chamber:  200mm×120mm×80mm
(7) Dimension:  490mm×490mm×450mm
(8) Net weight:  35kg
2. Temperature controller
(1) Rated controllable power:  5000W
(2) Power supply:  AC(220±10%)V, 50Hz
(3) Maximum control temperature:  1200℃
(4) Dimension:  500mm×300mm×235mm
(5) Net weight:  5kg
3. Electric heating plate
(1) Rated power:  1500W
(2) Power supply:  AC (220±10%) V, 50Hz
(3) Rated temperature:  400℃
(4) Heating power: (1～6) grades, continuously adjustable.
(5) Diameter of heating plate:  Φ85mm
(6) Dimension:  280mm×250mm×90mm

Main technical features

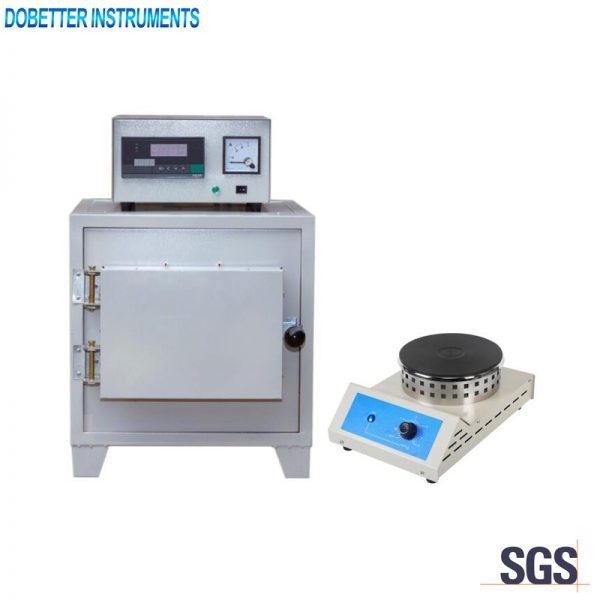

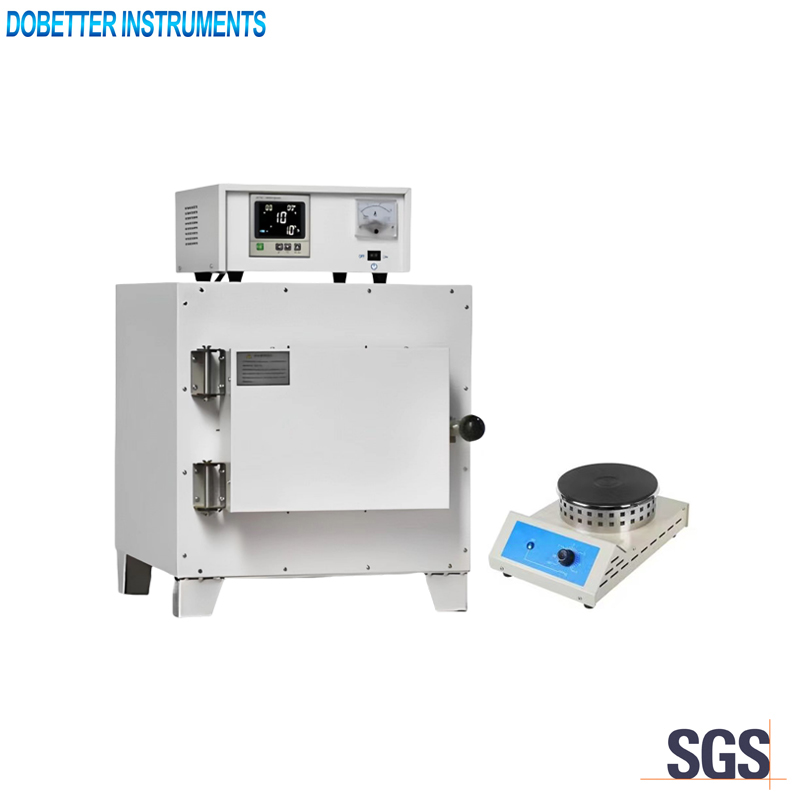

1. The instrument is composed of amufflefurnace, a temperature controller and an electric heating plate. It is small size and needs less land.
2. The muffle furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED is equipped on the temperature controller is. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85mm. Small size and good durability.
