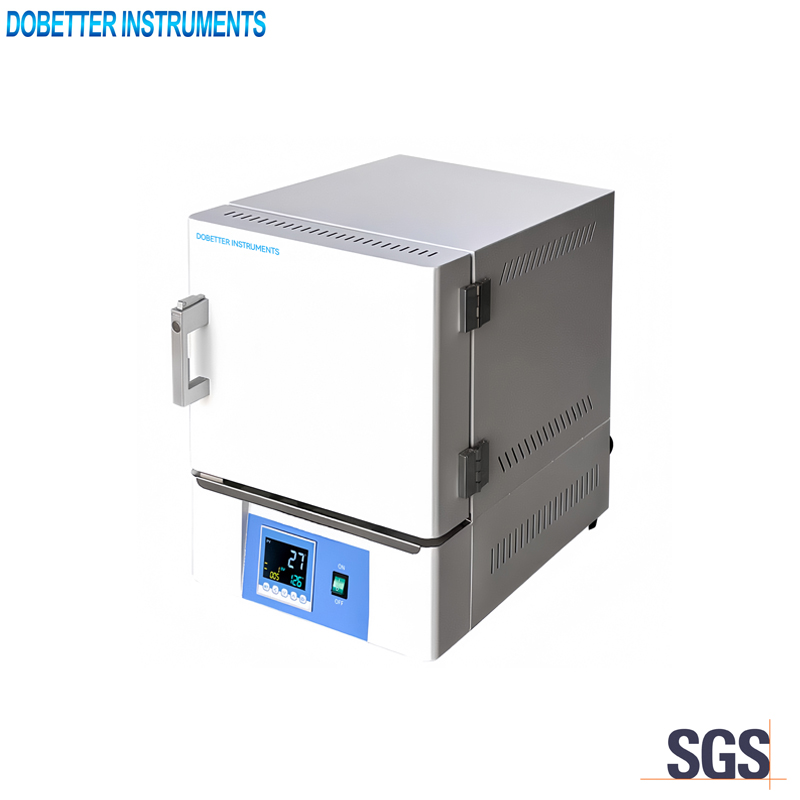

SX2-5-12LTP Ceramic Fiber Muffle Furnace

Description

SX series ceramic fiber muffle furnaces are widely used in many fields such as coal, petroleum, electric power, metallurgy, non-ferrous chemical industry, environmental protection, scientific research institutions and other industries laboratory coal composition analysis work.

Main technical specifications
1. Power supply：AC220V±10%, 50Hz
2. Power consumption：5000W
3. Max. Temperature：1200℃
4. Temperature control precision：±1℃
5. Temperature uniformity：±10℃
6. Controller：LCD
7. Heating programs：2 steps
8. Program memories：32 groups
9. Heating speed：≤30min
10. Thermal rate：Settable
11. Heating element：Ni-Cr, Embedded in the ceramic-fiber walls
12. Heating material：Ceramic fiber
13. Outer housing：Steel sheet with electrostatic coatings
14. Door opening：Sideward
15. Capacity of chamber：7L
16. Inner diameters of chamber(mm)：300×200×120
17. Outer size of furnace(mm)：640×540×620

Main technical features
1. A programmable LCD controller is equipped for the heating progresses which are needed.
2. The shell of the instrument is made of high quality steel sheet, and the surface is treated by spraying technology.
3. The heating material of the chamber is high-density ceramic fiber. The thermal insulation is good. The service life is long.
4. The door opening side is designed sideward. The power will be cut off automatically after opening.
