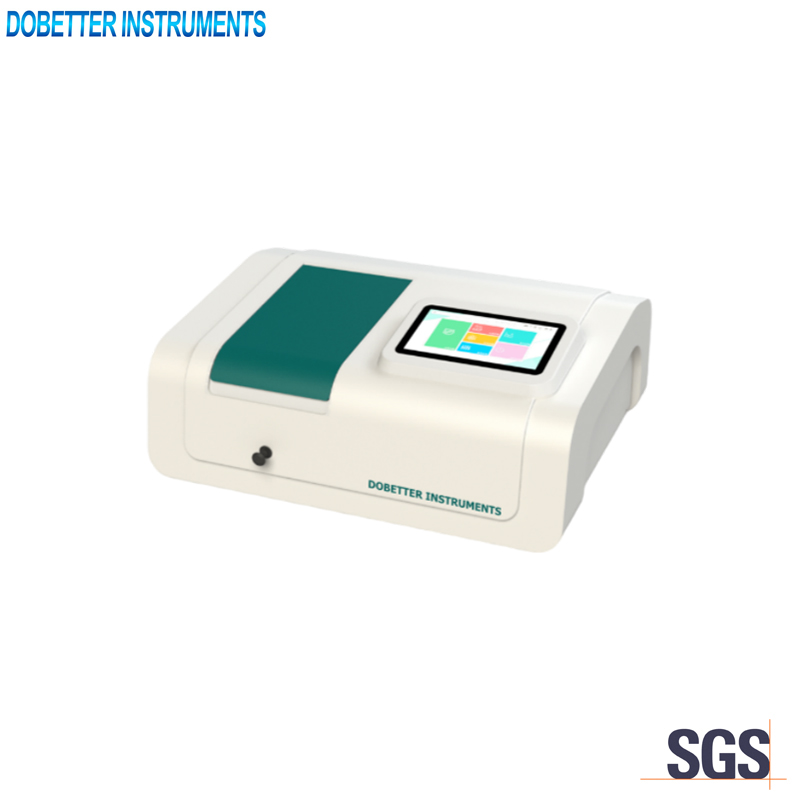

SDB-M2600D UV-Vis Spectrophotometer

Main technical specifications
1. Optical System: Double Beam, Grating 1200 lines/mm
2. Wavelength Range: 190～1100nm
3. Spectral Bandwidth: 2.0/4.0nm, selectable
4. Wavelength Accuracy: ±0.3nm
5. Wavelength Repeatability: 0.1nm
6. Transmittance Accuracy: ±0.2% τ
7. Transmittance Repeatability: 0.15% τ
8. Stray Light: ≤0.03% τ
9. Stability: 0.0005A/h (after warming up at 500nm)
10. Photometric Modes: Transmittance, Absorbance, Concentration, Energy
11. Wavelength Adjustment: Automatic
12. Photometric Range: -4～4A
13. Display: 7-inch Touch Screen
14. Detector: Imported Silicon Photodiode
15. Light Sources: Imported Deuterium Lamp, Imported Tungsten Lamp
16. Power Supply: AC 220V/50Hz or AC110V/60Hz
17. Power Consumption: 120W
18. Instrument Dimensions: 510*385*215mm
19. Net Weight: 16Kg

Main technical features
1. English operating system, 7-inch color touch LCD.
2. The SDB-M2600D successfully meets the stringent requirements for high-precision and high-reliability measurements, suitable for various applications including biological research, bio-industry, pharmaceutical analysis, drug manufacturing, teaching research, environmental protection, food hygiene, clinical testing, and epidemic prevention.
3. Broad wavelength range fulfills diverse application requirements.
4. Large-scale integrated circuit design significantly enhances system scalability and reliability.
5. Optimized optical path design with imported light sources and detectors ensures high performance and reliability.
6. Comprehensive measurement methods: Wavelength scanning, time scanning, multi-wavelength determination, higher-order derivative analysis (optional), dual-wavelength, triple-wavelength (optional), DNA/protein quantification (optional). All results directly displayed on the 7-inch screen.
7. Optional accessories: Single cell holder, manual 4-cell holder, automatic 8-cell holder, film sample holder, test tube rack, 1cm cuvette holder, 5cm cuvette holder (user-configurable) .
8. Supports external USB drive for data storage and transfer.
9. Measurement parameters and data retained after power-off for user convenience.
10. PC software control enables advanced operations (e.g., spectral scanning) for enhanced precision and flexible measurement requirements.
