Description

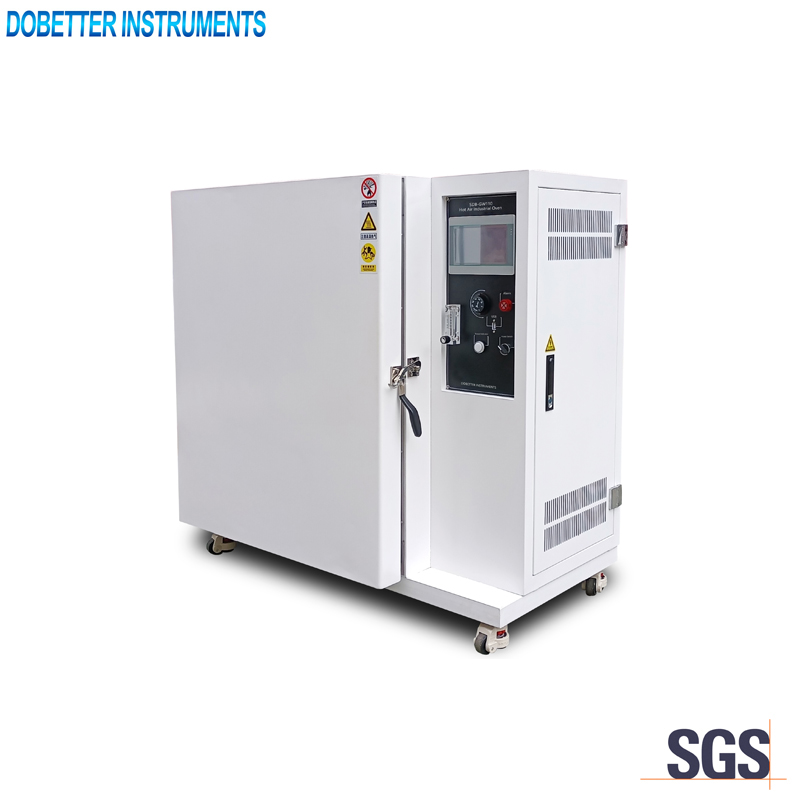

This equipment is suitable for use in fields such as aviation, automobiles, chemical engineering, biopharmaceuticals, laboratories, scientific research institutions, and colleges and universities to test and dry the products and materials under high-temperature conditions.
Main technical specifications
1. Power supply: AC380V, 50Hz; Three-phase five-wire
2. Temperature range: Rt. to 600℃
3. Temperature precision: ±0.3℃
4. Temperature uniformity: ±1%
5. Heating-up rate: About 10 min(Rt. to 100℃);
About 30min(Rt. to 400℃)
6. Heating method: Hot air cycling
7. Inner size: 500mm×450mm×500mm, about 110L
8. Outer size: 1300mm×780mm×1100mm
9. Size of shelves: 465mm×420mm×8mm, 2pcs
10. Cooling-down method: Natural cooling or nitrogen injection cooling
11. Overheat protection: Yes
12. Power consumption: 6KW
13. Net weight: About 200Kg
Main technical features
1. Digital display with colored touch LCD controls. Easy to operate. Customizable operation modes and program group operation modes are available. A 10-stage temperature and time period increase program is set in. It has an abnormal alarm function of temperature sensor.
2. The curves, data records, fault alarm records can be checked out. An USB port is equipped for data download.
3. 1.2mm thick high-quality and high-grade SUS316 brushed stainless steel plate material is used for the inner chamber. 1.2mm thick cold-rolled carbon steel plate, with rust removal, phosphating and electrostatic powder coating on the surface of the outer shell.
4. A high-temperature silicone rubber sealing ring is used between the door and the inner chamber, which is double-layered and designed in a U-shaped groove for easy replacement by the operator after aging.
5. Protections: Overheat protection, leakage protection and over-current protection are set up.
