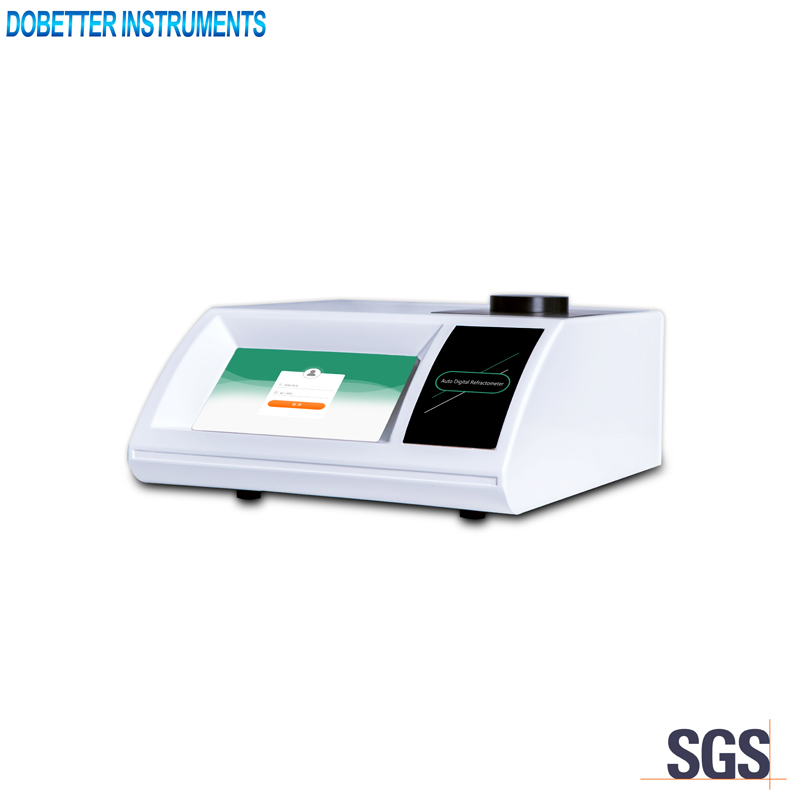

SDB-ADR5100 Automatic Digital Refractometer is equipped with high-performance linear array CCD sensitive components, through high-speed, high-precision signal acquisition and analysis and processing technology, and semiconductor built-in Partier temperature control system. It can effectively and accurately measure the refractive index (nD) of transparent, translucent, dark, viscous and other liquids and the mass fraction of sugar solution (Brix/Brix). It is an upgraded and high precision digital refractometer.
Specifications&Features
Main technical specifications
1. Power supply：AC220V, 50Hz
2. Measuring range：1.30000 to 1.70000 (ND)
3. Resolution：0.00001 (ND)
4. Precision：±0.00002 (ND)
5. Operating mode：Refractive index/sugar content/salinity/honey moisture/carbamide/urinometric/glycol/anti-rust solution/customized
6. Brix range and precision：0 to100 %, ±0.05%
7. Temperature control method：Built-in Peltier
8. Temperature range&precision：5 to 65℃,±0.02℃
9. Light source：LED
10. Wavelength range：589 nm
11. Detection method：High-resolution linear CCD
12. Prism：Sapphire
13. Sample cell：Hastelloy
14. Display method：7-inch FTF color touchscreen
15. Data storage capacity：32G
16. Data output：USB, RS232, Ethernet port, SD card, U disk
17. User management：Yes/Four-level authority management
Main technical features
1. Wide application ranges. It can run as per kinds of standard test methods such as SH/T 0724, SH/T 0205, GB/T 6488, GB/T 614, ASTM D1218, ASTM D1807, ASTM D5006, ASTM D1569, ASTM D1992, ASTM D2140, ASTM D4056, ASTM D4095, ICUMSA:GS 4/3-13, OIML:R124, ISO 1743.
2. A 7 - inch color touchscreen and humanized operation software are equipped.
3. The LED cold light source replaces the traditional sodium light lamp and halogen tungsten lamp.
4. Built-in Peltier temperature control method is used.
5. Up to 32G data storage space.
