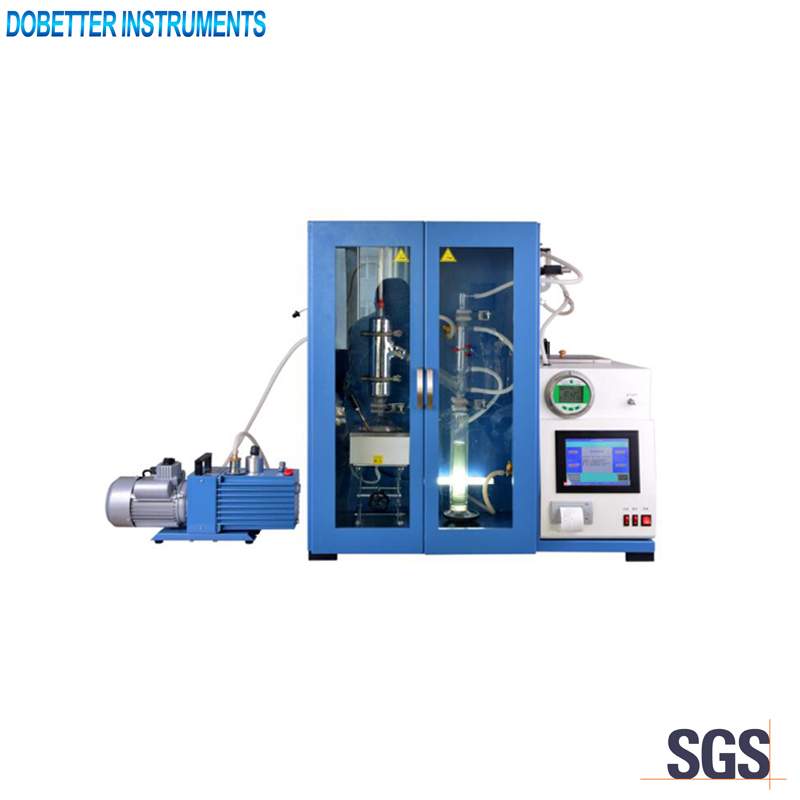

SDB-9168 Semi-automatic Vacuum Distillation Tester

Main technical specifications
1. Power supply：AC220V±10%, 50Hz
2. Temperature range：Rt. - 450℃
3. Temperature precision：±0.1℃
4. Max. Temperature in the flask：400℃
5. Max. Temperature in the condenser：80℃
6. Max. Sample amount：200mL
7. Max. Receiving capacity：200mL
8. Maximum power consumption：1300W
9. Overall dimension：850×500×900mm
10. Net weight：50Kg
11. Working environment：5-40℃, RH≤85%

Main technical features
1. Microcomputer control system. Colored touch LCD operation. It can store, call out and print the test records. It can convert the vapor temperature into the AET under atmospheric pressure automatically.
2. A digital pressure-sensitive vacuum gauge is equipped which can display the vacuum value visually. A high-quality and finely processed vacuum valve is equipped. It is small in size, easy to operate, well sealed and can be fine-tuned.
3. It has a reasonable structure, stable performance and good reproducibility.
